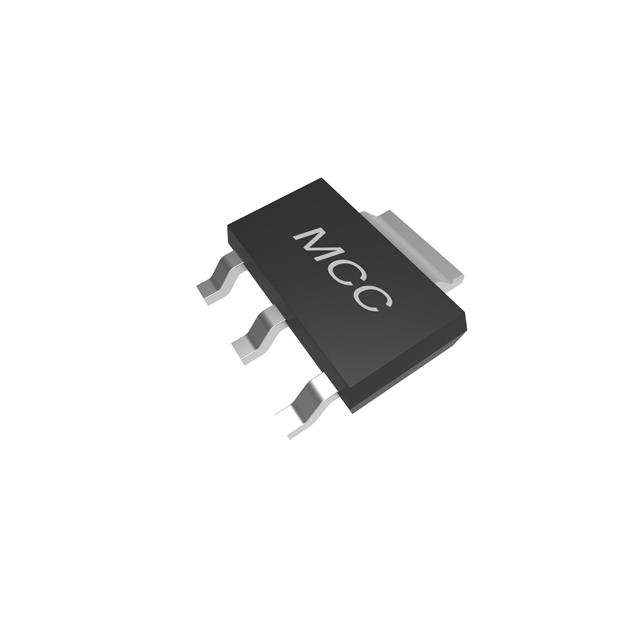

MCT1119C-ADJ-TP
InterfaceManufacturer: Micro Commercial Co
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
The Micro Commercial Co MCT1119C-ADJ-TP is a positive adjustable linear voltage regulator IC. It offers a 1.2A output current capability with a minimum output voltage of 1.25V and a maximum output voltage of 12V. The device features a dropout voltage of 1.3V at 1A and a maximum input voltage of 15V. Key protection features include over-temperature protection. With a PSRR of 63dB across the 120Hz to 1kHz range, this component is suitable for applications in industrial control, automotive electronics, and consumer devices requiring stable power regulation. The MCT1119C-ADJ-TP is supplied in a SOT-223 package, designed for surface mounting, and operates within an ambient temperature range of -40°C to 125°C.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: 16 week(s)Product Status: Not For New DesignsPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-261-4, TO-261AA |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Current - Output | 1.2A |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 10 mA |
| Voltage - Input (Max) | 15V |
| Number of Regulators | 1 |
| Supplier Device Package | SOT-223 |
| Voltage - Output (Max) | 12V |
| Voltage - Output (Min/Fixed) | 1.25V |
| Control Features | - |
| PSRR | 63dB (120Hz ~ 1kHz) |
| Voltage Dropout (Max) | 1.3V @ 1A |
| Protection Features | Over Temperature |
