MCT1117B-ADJ-TP
InterfaceManufacturer: Micro Commercial Co
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More

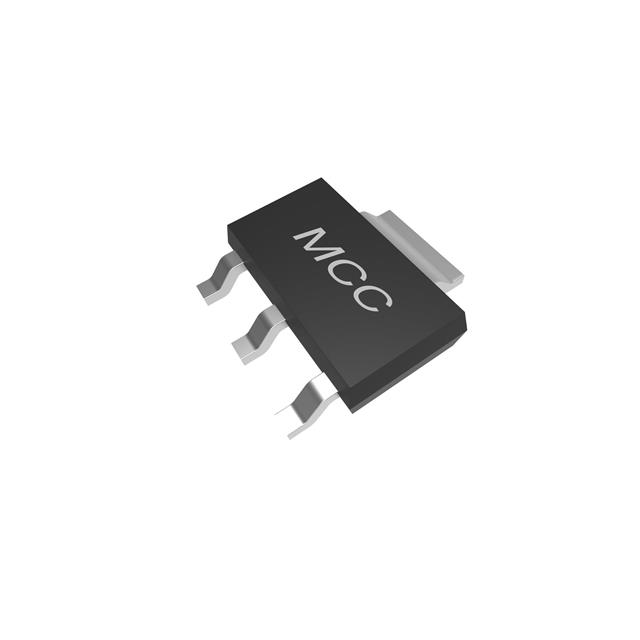

Micro Commercial Co MCT1117B-ADJ-TP is a positive adjustable linear voltage regulator. This component offers an output current capability of 1A with a low dropout voltage of 1.3V at 1A. The output voltage is adjustable from a minimum of 1.25V up to a maximum of 13.7V, with a maximum input voltage of 15V. The device features a power supply rejection ratio (PSRR) of 75dB at 120Hz. Supplied in a SOT-223 package, it is designed for surface-mount applications and operates within a temperature range of -25°C to 125°C. This regulator is suitable for use in various industrial applications requiring stable voltage regulation.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-261-4, TO-261AA |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Current - Output | 1A |
| Operating Temperature | -25°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Voltage - Input (Max) | 15V |
| Number of Regulators | 1 |
| Supplier Device Package | SOT-223 |
| Voltage - Output (Max) | 13.7V |
| Voltage - Output (Min/Fixed) | 1.25V |
| Control Features | - |
| PSRR | 75dB (120Hz) |
| Voltage Dropout (Max) | 1.3V @ 1A |
| Protection Features | - |
