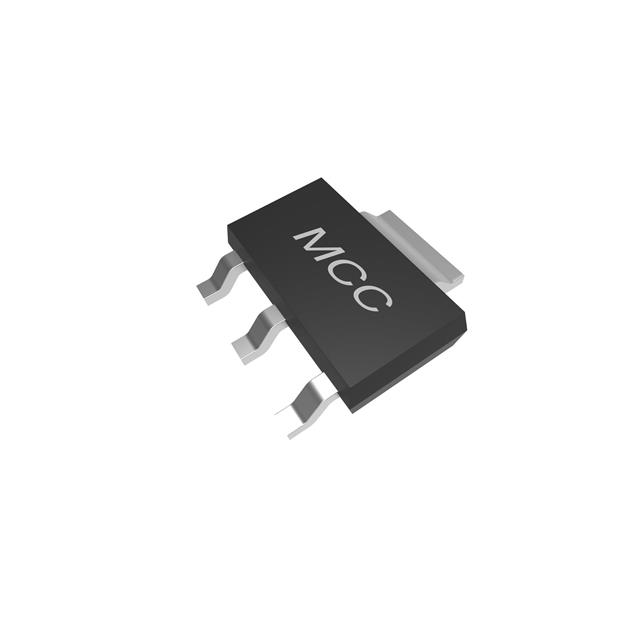

MCT1117B-3.3-TP
InterfaceManufacturer: Micro Commercial Co
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
The Micro Commercial Co MCT1117B-3-3-TP is a positive fixed linear voltage regulator. This component offers a stable 3.3V output with a maximum output current capability of 1A. Designed for surface mount applications, it utilizes a SOT-223 package. Key specifications include a maximum input voltage of 15V and a typical dropout voltage of 1.3V at 1A. The device exhibits a Power Supply Rejection Ratio (PSRR) of 75dB at 120Hz, suitable for noise-sensitive applications. Operating temperature ranges from -25°C to 125°C (TJ). This regulator finds application in various industrial sectors including consumer electronics, telecommunications, and automotive systems.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-261-4, TO-261AA |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 1A |
| Operating Temperature | -25°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Voltage - Input (Max) | 15V |
| Number of Regulators | 1 |
| Supplier Device Package | SOT-223 |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 3.3V |
| Control Features | - |
| PSRR | 75dB (120Hz) |
| Voltage Dropout (Max) | 1.3V @ 1A |
| Protection Features | - |
| Current - Supply (Max) | 10 mA |
