MCT1117B-2.5-TP
InterfaceManufacturer: Micro Commercial Co
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More

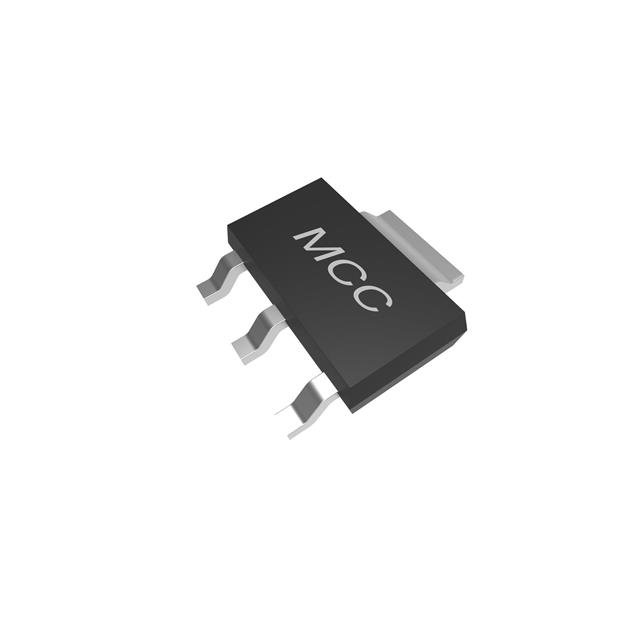

The Micro Commercial Co MCT1117B-2-5-TP is a positive fixed voltage linear regulator IC. This component delivers a stable 2.5V output at up to 1A, featuring a maximum input voltage of 15V. With a typical quiescent current of 10mA and a voltage dropout of 1.3V at 1A, it is well-suited for power management in a variety of applications. The device offers a power supply rejection ratio (PSRR) of 75dB at 120Hz. Packaged in a SOT-223 surface-mount case (TO-261-4, TO-261AA), it operates across a temperature range of -25°C to 125°C (TJ). This regulator is commonly utilized in consumer electronics, industrial control systems, and telecommunications equipment.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-261-4, TO-261AA |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 1A |
| Operating Temperature | -25°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Voltage - Input (Max) | 15V |
| Number of Regulators | 1 |
| Supplier Device Package | SOT-223 |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 2.5V |
| Control Features | - |
| PSRR | 75dB (120Hz) |
| Voltage Dropout (Max) | 1.3V @ 1A |
| Protection Features | - |
| Current - Supply (Max) | 10 mA |
