MC78L33F-TP
ICManufacturer: Micro Commercial Co
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Micro Commercial Co MC78L33F-TP is a positive fixed output linear voltage regulator IC. This component delivers a stable 3.3V output with a maximum current capability of 100mA. Designed for surface mount applications, it is supplied in a SOT-89 package, presented on tape and reel. The device features over current, over temperature, and short circuit protection. With an input voltage range up to 30V and a quiescent current of 6mA, it exhibits a typical PSRR of 49dB at 120Hz. The operating temperature range is -40°C to 125°C. This regulator is suitable for applications in consumer electronics, industrial control, and automotive systems requiring reliable voltage regulation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-243AA |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 100mA |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 6 mA |
| Voltage - Input (Max) | 30V |
| Number of Regulators | 1 |
| Supplier Device Package | SOT-89 |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 3.3V |
| Control Features | - |
| PSRR | 49dB (120Hz) |
| Voltage Dropout (Max) | 2.5V @ 40mA |
| Protection Features | Over Current, Over Temperature, Short Circuit |
Request a Quote
Clients Also Buy
MC7906CT-BP
IC REG LINEAR -6V 1A TO220
MCA1117C-ADJ-TP
Interface

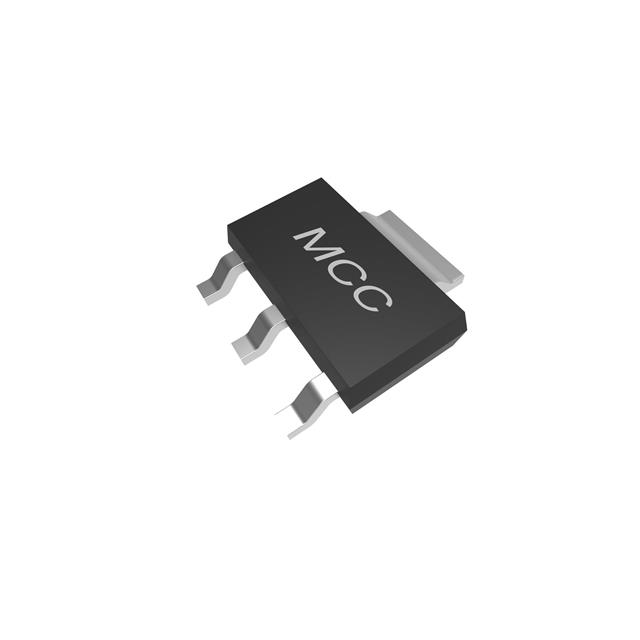

MCT1117C-2.85-TP
