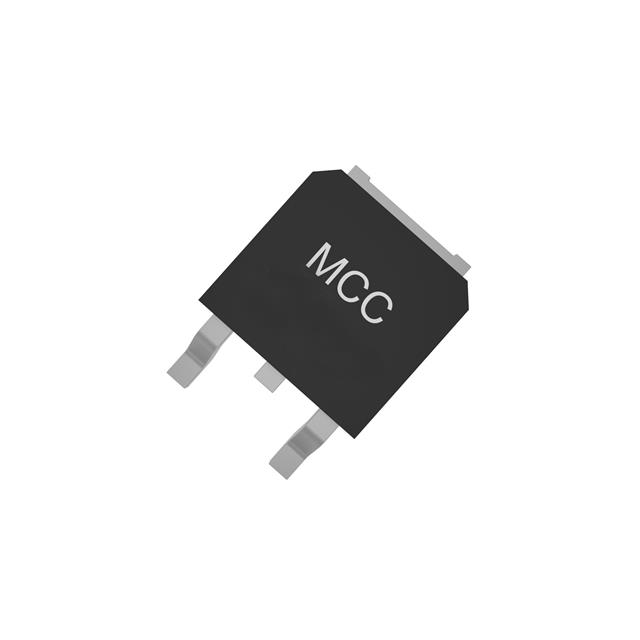

MC78D05CDT-TP
InterfaceManufacturer: Micro Commercial Co
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
The Micro Commercial Co MC78D05CDT-TP is a positive fixed output linear voltage regulator. This device features a single output channel capable of delivering up to 1A. Designed for surface mounting, it is supplied in a TO-252-3, DPAK (2 Leads + Tab), SC-63 package. The regulator offers a fixed 5V output voltage and operates with an input voltage range up to 20V. Protection features include over-current, over-temperature, and short-circuit protection. With a quiescent current of 8mA and a Power Supply Rejection Ratio (PSRR) of 62dB at 120Hz, this component is suitable for applications in consumer electronics, industrial control, and automotive systems. Operating temperature range is from 0°C to 125°C.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 1A |
| Operating Temperature | 0°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 8 mA |
| Voltage - Input (Max) | 20V |
| Number of Regulators | 1 |
| Supplier Device Package | DPAK |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 5V |
| Control Features | - |
| PSRR | 62dB (120Hz) |
| Voltage Dropout (Max) | 5.2V @ 1A |
| Protection Features | Over Current, Over Temperature, Short Circuit |
