MC6225-1.2-TP
InterfaceManufacturer: Micro Commercial Co
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More

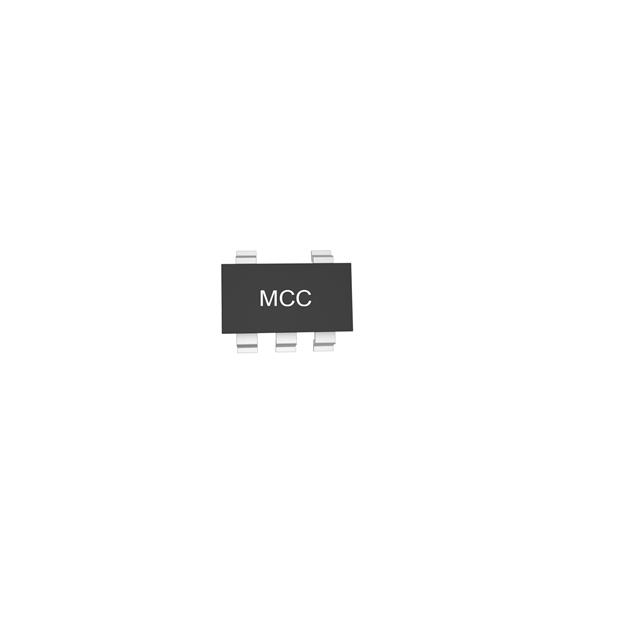

Linear Voltage Regulator IC Positive Fixed 1 Output 500mA SOT-23-5L
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | SC-74A, SOT-753 |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 500mA |
| Operating Temperature | -40°C ~ 85°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 100 µA |
| Voltage - Input (Max) | 6V |
| Number of Regulators | 1 |
| Supplier Device Package | SOT-23-5L |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 1.2V |
| Control Features | Current Limit, Enable |
| PSRR | 80dB ~ 75dB (100Hz ~ 10kHz) |
| Voltage Dropout (Max) | - |
| Protection Features | Over Current, Short Circuit, Transient Voltage |
