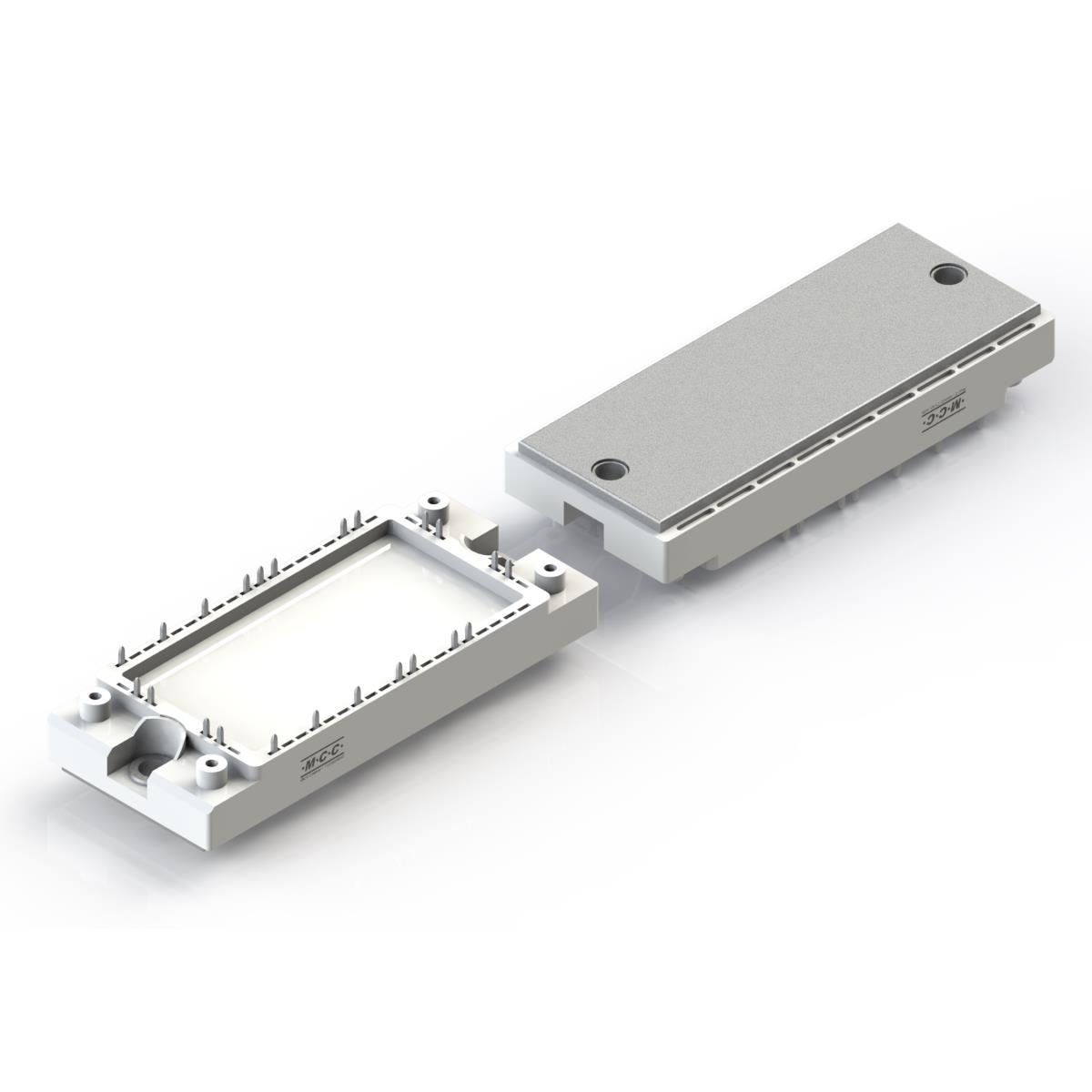

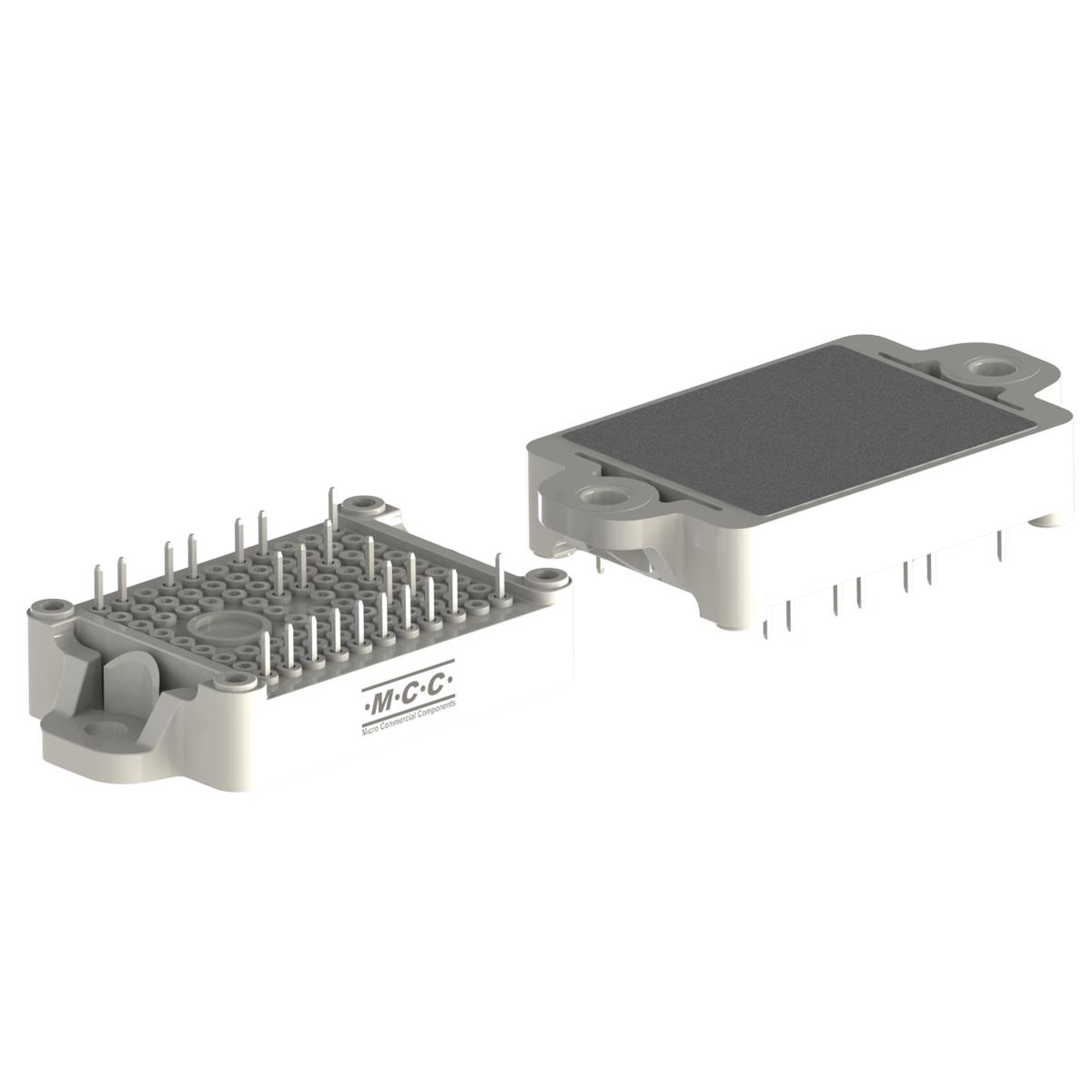

MIP35R12E1ATN-BP
IGBT MODULESManufacturer: Micro Commercial Co
Categories: IGBT Modules
Quality Control: Learn More
IGBT Module Three Phase Inverter 1200 V 35 A 227 W Chassis Mount
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 9 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Three Phase Bridge Rectifier |
| Configuration | Three Phase Inverter |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 2.3V @ 15V, 35A |
| NTC Thermistor | Yes |
| Supplier Device Package | - |
| IGBT Type | - |
| Current - Collector (Ic) (Max) | 35 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Power - Max | 227 W |
| Current - Collector Cutoff (Max) | 1 mA |
| Input Capacitance (Cies) @ Vce | 2250 pF @ 25 V |
Request a Quote
Clients Also Buy

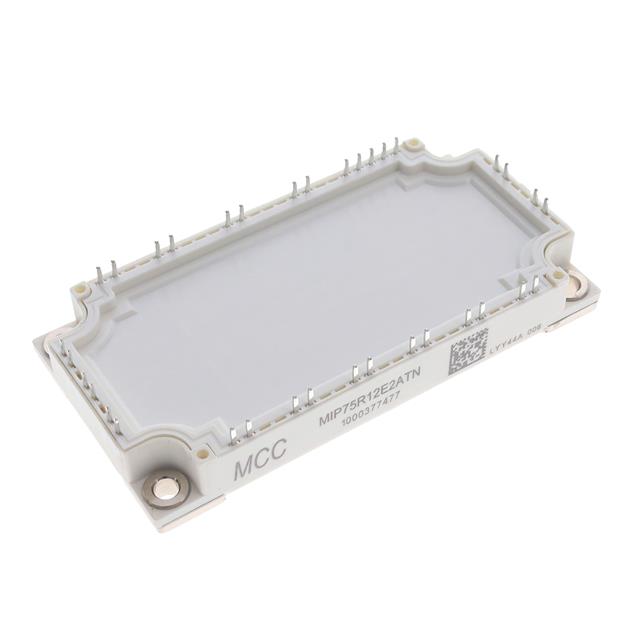

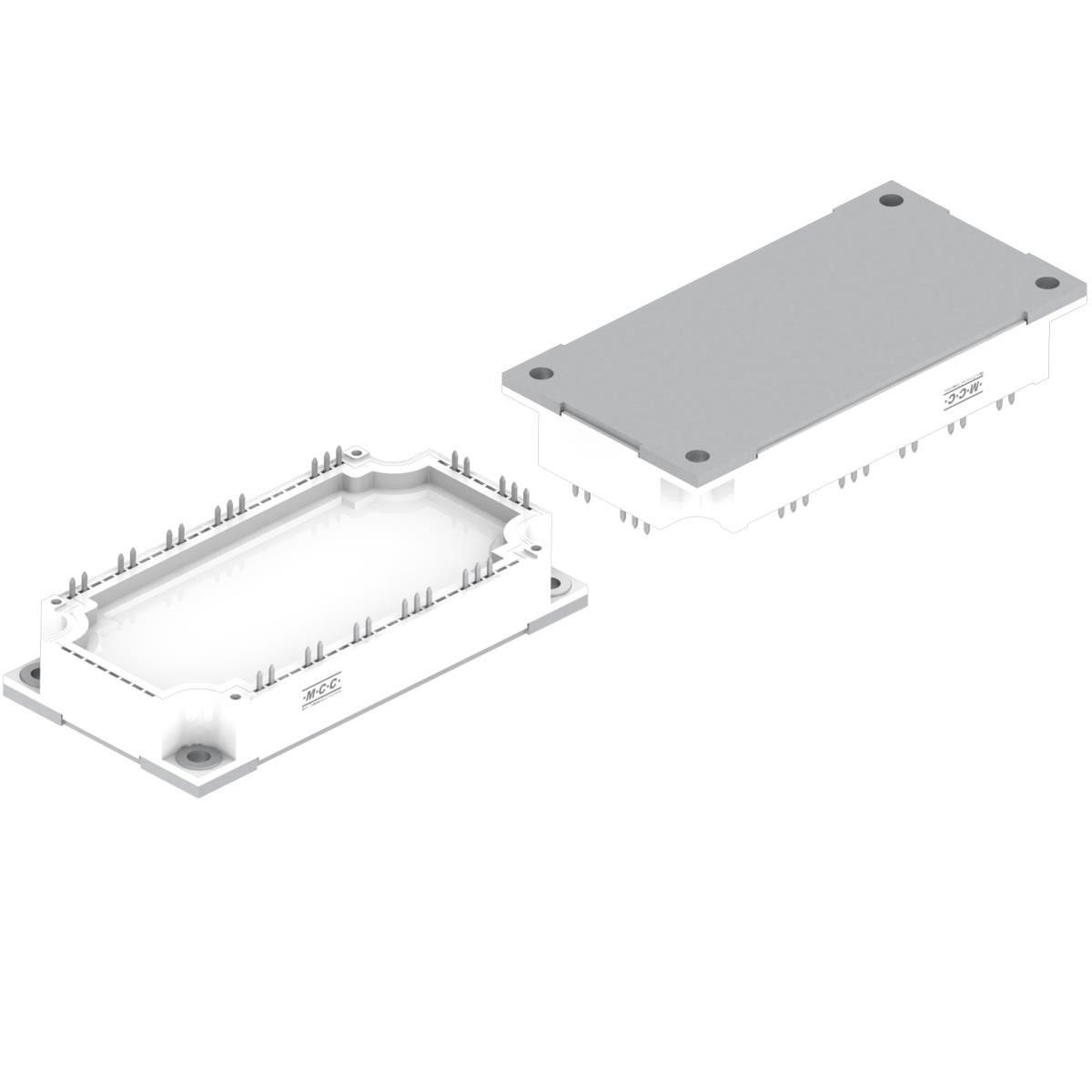

MIP75R12E2TN-BP
IGBT MODULES

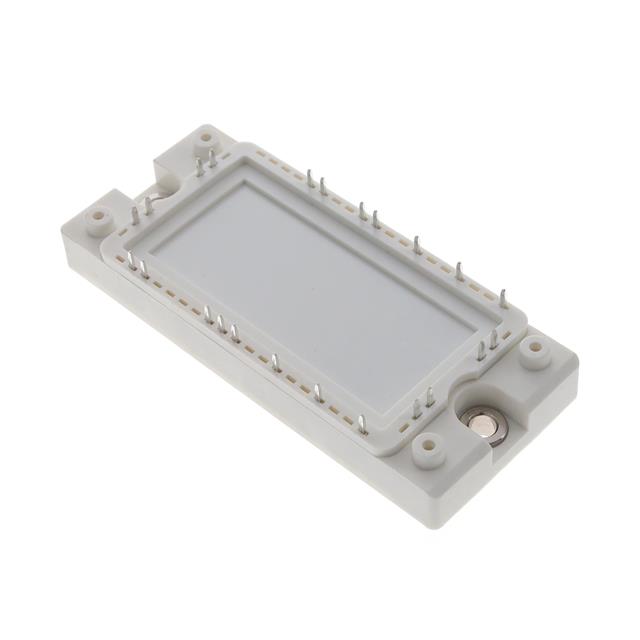

MIP50R12E1ATN-BP
