MCS8804-TP
MOSFET 2N-CH 20V 8A 8TSSOPManufacturer: Micro Commercial Co
Categories: FET, MOSFET Arrays
Quality Control: Learn More

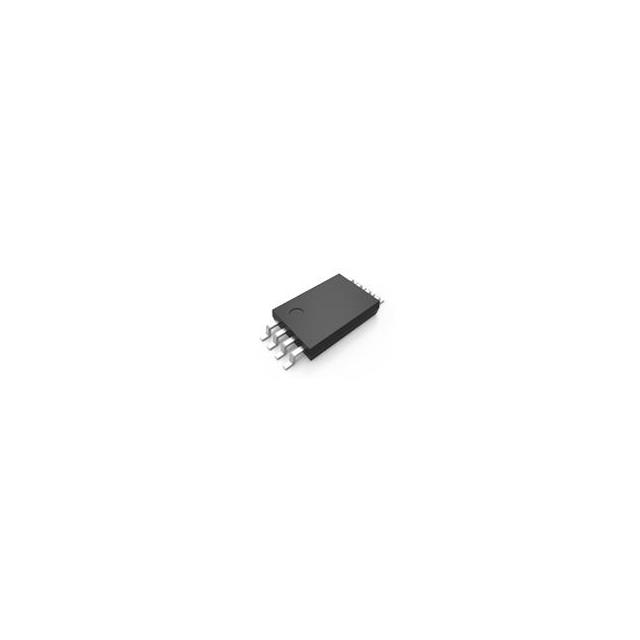

Micro Commercial Co MCS8804-TP is a dual N-channel MOSFET array in an 8-TSSOP package suitable for surface mounting. This component features a drain-to-source voltage (Vdss) of 20V and a continuous drain current (Id) of 8A at 25°C. The Rds On is specified at a maximum of 13mOhm at 8A and 10V. Key electrical parameters include a gate charge (Qg) of 17.9nC (max) at 4.5V and input capacitance (Ciss) of 1800pF (max) at 10V. The threshold voltage (Vgs(th)) is 1V (max) at 250µA. Operating temperature ranges from -55°C to 150°C. This device is commonly utilized in power management and switching applications across various industries. The component is supplied on tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-TSSOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Configuration | 2 N-Channel (Dual) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | - |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25°C | 8A |
| Input Capacitance (Ciss) (Max) @ Vds | 1800pF @ 10V |
| Rds On (Max) @ Id, Vgs | 13mOhm @ 8A, 10V |
| Gate Charge (Qg) (Max) @ Vgs | 17.9nC @ 4.5V |
| FET Feature | - |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Supplier Device Package | 8-TSSOP |
