MCCD2004-TP

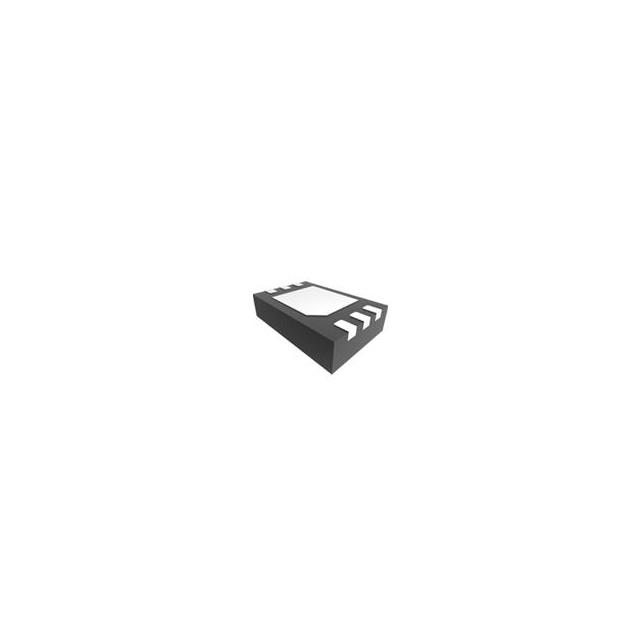

MOSFET 2N-CH 20V 10A 6DFNManufacturer: Micro Commercial Co
Categories: FET, MOSFET Arrays
Quality Control: Learn More
Micro Commercial Co MCCD2004-TP is a dual N-channel MOSFET array designed for surface mount applications. This component offers a 20V drain-source voltage rating and a continuous drain current capability of 10A at 25°C. The low on-resistance of 10mOhm is achieved at 8A and 10V gate-source voltage. The device features a common drain configuration and is packaged in a compact 6-WFDFN exposed pad (DFN2030-6). Key electrical parameters include a maximum gate charge of 18.5nC at 4.5V and an input capacitance of 1955pF at 10V. Operating temperature range is from -55°C to 150°C. This MOSFET array is suitable for use in power management and switching applications across various electronic systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-WFDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Configuration | 2 N-Channel (Dual) Common Drain |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | - |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25°C | 10A |
| Input Capacitance (Ciss) (Max) @ Vds | 1955pF @ 10V |
| Rds On (Max) @ Id, Vgs | 10mOhm @ 8A, 10V |
| Gate Charge (Qg) (Max) @ Vgs | 18.5nC @ 4.5V |
| FET Feature | - |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Supplier Device Package | DFN2030-6 |
