MURBF3060CT-TP
RECTIFIERSManufacturer: Micro Commercial Co
Categories: Diode Arrays
Quality Control: Learn More

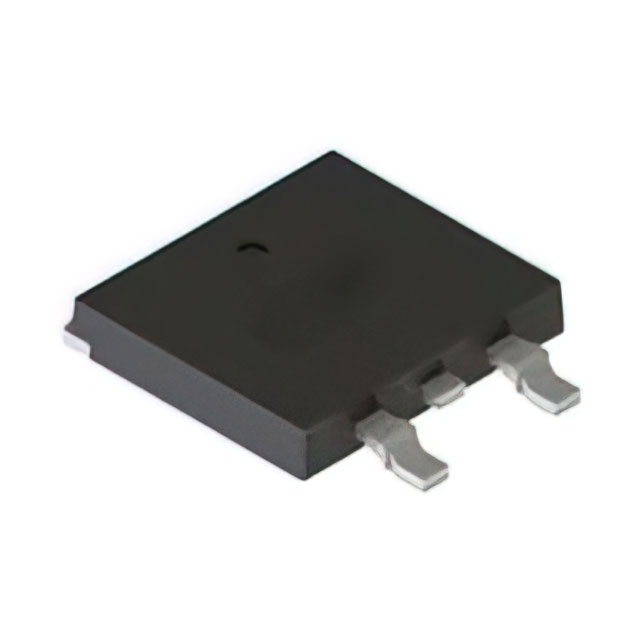

The Micro Commercial Co MURBF3060CT-TP is a dual diode array featuring a common cathode configuration. This device offers a repetitive peak reverse voltage of 600V and an average rectified forward current of 15A per diode. With a fast recovery time of 55ns, it is suitable for applications requiring efficient switching. The forward voltage drop is a maximum of 1.25V at 15A. This component is housed in a TO-263AB package, a surface mount solution designed for thermal efficiency. The operating junction temperature range is from -55°C to 175°C. This rectifier array is commonly utilized in power supply circuits, motor control, and industrial automation systems where robust rectification performance is critical. It is supplied in a Digi-Reel® package for automated assembly.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 22 week(s)Product Status: ActivePackaging: Digi-Reel®Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Digi-Reel® |
| Package / Case | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 55 ns |
| Technology | Standard |
| Diode Configuration | 1 Pair Common Cathode |
| Current - Average Rectified (Io) (per Diode) | 15A |
| Supplier Device Package | TO-263AC |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Grade | - |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Voltage - Forward (Vf) (Max) @ If | 1.25 V @ 15 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 600 V |
| Qualification | - |
