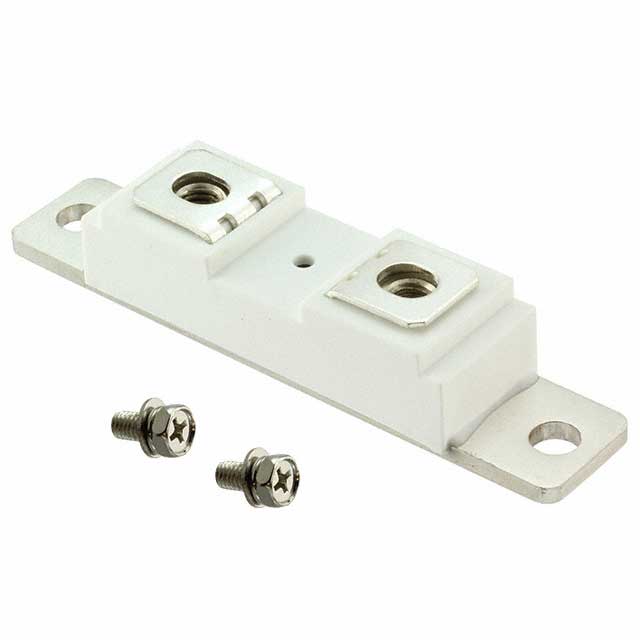

MF200K06F4-BP
DIODE MODULE GP 600V 100A F4Manufacturer: Micro Commercial Co
Categories: Diode Arrays
Quality Control: Learn More
Micro Commercial Co MF200K06F4-BP is a fast recovery diode module featuring a common anode configuration. This component is rated for a maximum DC reverse voltage of 600V and an average rectified current of 100A per diode. The forward voltage drop is specified at 1.15V at 100A, with a reverse leakage current of 500 µA at 600V. The device exhibits a reverse recovery time (trr) of 105 ns. Designed for chassis mounting within an F4 module package, it operates across a junction temperature range of -40°C to 150°C. This diode array is suitable for applications in industrial power, motor control, and power supply systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | F4 Module |
| Mounting Type | Chassis Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 105 ns |
| Technology | Standard |
| Diode Configuration | 1 Pair Common Anode |
| Current - Average Rectified (Io) (per Diode) | 100A |
| Supplier Device Package | F4 |
| Operating Temperature - Junction | -40°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Voltage - Forward (Vf) (Max) @ If | 1.15 V @ 100 A |
| Current - Reverse Leakage @ Vr | 500 µA @ 600 V |
