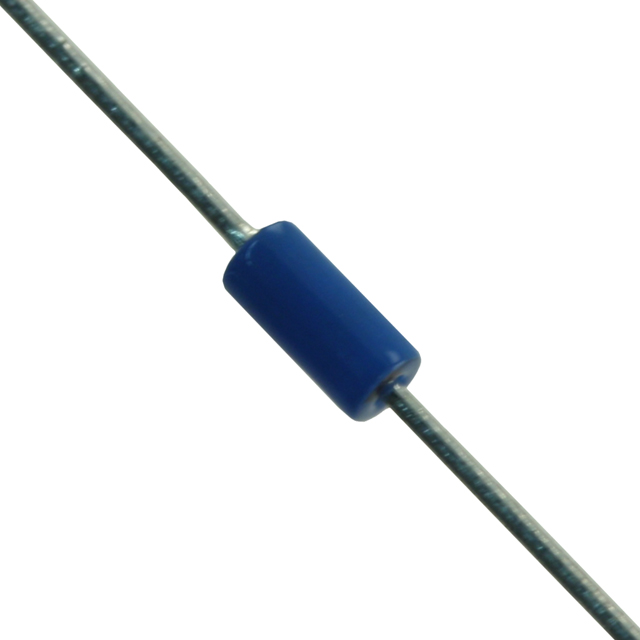

DB3-TP
DIAC 28-36V 2A DO35Manufacturer: Micro Commercial Co
Categories: DIACs, SIDACs
Quality Control: Learn More
The Micro Commercial Co. DB3-TP is a DIAC designed for triggering thyristor devices. This component offers a breakover voltage range of 28 to 36V, with a typical breakover current of 100 µA. It is rated for a peak output current of 2 A and operates within an ambient temperature range of -40°C to 110°C. The DB3-TP is supplied in a DO-35G axial lead package, suitable for high-volume manufacturing via tape and reel. This device finds application in power control circuits, lighting controls, and motor speed regulation within industrial and consumer electronics sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-204AH, DO-35, Axial |
| Operating Temperature | -40°C ~ 110°C (TJ) |
| Voltage - Breakover | 28 ~ 36V |
| Current - Breakover | 100 µA |
| Supplier Device Package | DO-35G |
| Current - Peak Output | 2 A |
