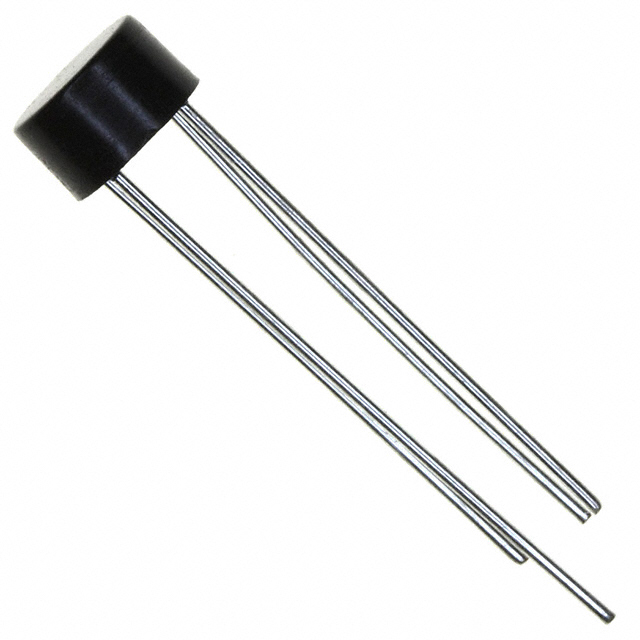

W10M-BP
BRIDGE RECT 1PHASE 1KV 1.5A WOMManufacturer: Micro Commercial Co
Categories: Bridge Rectifiers
Quality Control: Learn More
Micro Commercial Co W10M-BP is a single-phase bridge rectifier designed for demanding applications. This component features a 1 kV peak reverse voltage rating and a 1.5 A average rectified forward current (Io). It offers a maximum forward voltage drop of 1 V at 1.5 A, with a low reverse leakage current of 10 µA at 1000 V. The W10M-BP utilizes standard recovery technology. Its through-hole mounting and 4-circular WOM package facilitate robust assembly. Operating across a temperature range of -55°C to 125°C (TJ), this rectifier is suitable for power supply circuits, industrial controls, and general purpose rectification in various electronics manufacturing.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 4-Circular, WOM |
| Mounting Type | Through Hole |
| Diode Type | Single Phase |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Technology | Standard |
| Supplier Device Package | WOM |
| Voltage - Peak Reverse (Max) | 1 kV |
| Current - Average Rectified (Io) | 1.5 A |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 1.5 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 1000 V |
