W08M-BP
BRIDGE RECT 1PHASE 800V 1.5A WOMManufacturer: Micro Commercial Co
Categories: Bridge Rectifiers
Quality Control: Learn More

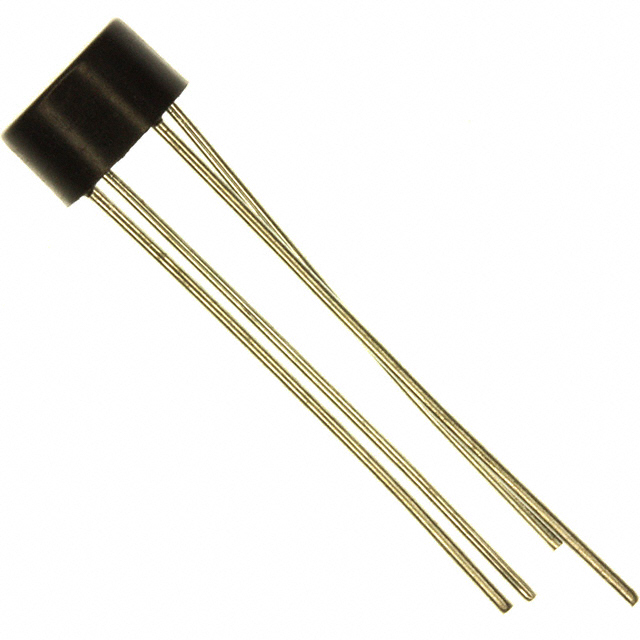

Micro Commercial Co W08M-BP is a single-phase bridge rectifier designed for general-purpose power rectification. This through-hole component offers a peak reverse voltage rating of 800V and a maximum average rectified current of 1.5A. The device features a standard recovery time and a forward voltage drop of 1V at 1.5A. Leakage current is specified at 5 µA at 800V. Operating temperature ranges from -55°C to 125°C (TJ). The W08M-BP is supplied in a 4-circular WOM package, suitable for applications in power supplies, industrial controls, and consumer electronics where robust rectification is required. This component is provided in bulk packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 4-Circular, WOM |
| Mounting Type | Through Hole |
| Diode Type | Single Phase |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Technology | Standard |
| Supplier Device Package | WOM |
| Voltage - Peak Reverse (Max) | 800 V |
| Current - Average Rectified (Io) | 1.5 A |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 1.5 A |
| Current - Reverse Leakage @ Vr | 5 µA @ 800 V |
