W06M-BP
BRIDGE RECT 1PHASE 600V 1.5A WOMManufacturer: Micro Commercial Co
Categories: Bridge Rectifiers
Quality Control: Learn More

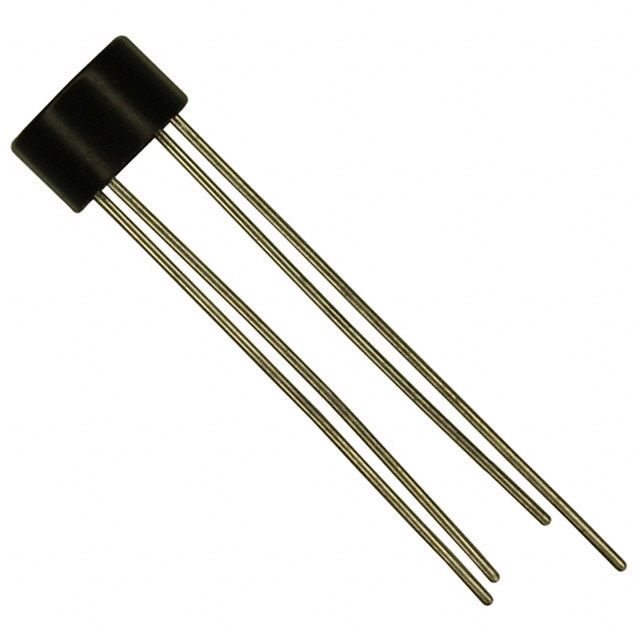

Micro Commercial Co W06M-BP is a single-phase bridge rectifier with a peak reverse voltage rating of 600V and an average rectified current of 1.5A. This through-hole component features a WOM package and operates within a temperature range of -55°C to 125°C. The maximum forward voltage is 1V at 1.5A, with a reverse leakage current of 10µA at 600V. Suitable for applications in power supplies, consumer electronics, and industrial control systems, it utilizes standard rectifier technology.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 4-Circular, WOM |
| Mounting Type | Through Hole |
| Diode Type | Single Phase |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Technology | Standard |
| Supplier Device Package | WOM |
| Voltage - Peak Reverse (Max) | 600 V |
| Current - Average Rectified (Io) | 1.5 A |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 1.5 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 600 V |
