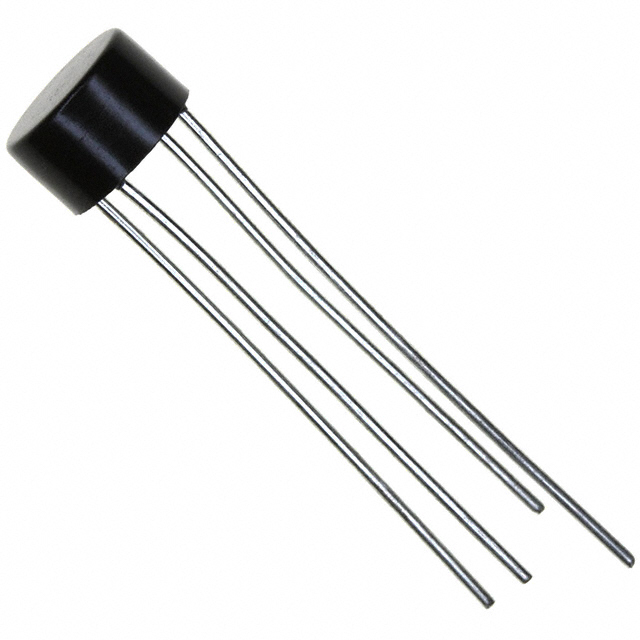

W04M-BP
BRIDGE RECT 1PHASE 400V 1.5A WOMManufacturer: Micro Commercial Co
Categories: Bridge Rectifiers
Quality Control: Learn More
Micro Commercial Co W04M-BP is a single-phase, standard bridge rectifier designed for applications requiring robust power conversion. This through-hole component features a maximum reverse voltage of 400V and an average rectified forward current capability of 1.5A. The device exhibits a low forward voltage drop of 1V at 1.5A and a reverse leakage current of 10µA at its maximum reverse voltage. Operating across a wide temperature range from -55°C to 125°C (TJ), the W04M-BP is housed in a 4-pin circular WOM package, suitable for bulk packaging. Its design makes it suitable for use in power supplies, industrial controls, and consumer electronics where reliable rectification is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 4-Circular, WOM |
| Mounting Type | Through Hole |
| Diode Type | Single Phase |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Technology | Standard |
| Supplier Device Package | WOM |
| Voltage - Peak Reverse (Max) | 400 V |
| Current - Average Rectified (Io) | 1.5 A |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 1.5 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 400 V |
