W02M-BP
BRIDGE RECT 1PHASE 200V 1.5A WOMManufacturer: Micro Commercial Co
Categories: Bridge Rectifiers
Quality Control: Learn More

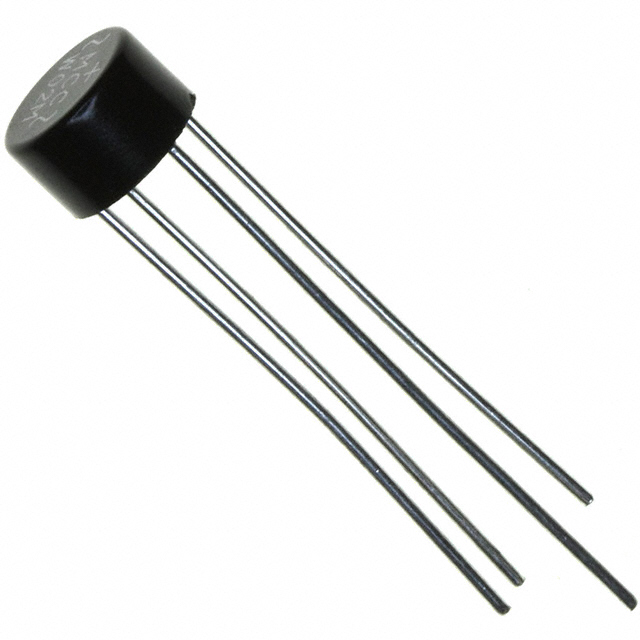

Micro Commercial Co W02M-BP is a single-phase bridge rectifier designed for standard rectification applications. This through-hole component offers a maximum repetitive peak reverse voltage of 200V and an average rectified current of 1.5A. Featuring a forward voltage drop of 1V at 1.5A, it exhibits a low reverse leakage current of 10 µA at its rated reverse voltage. The W02M-BP is housed in a 4-circular WOM package, suitable for bulk packaging. Its operating temperature range spans from -55°C to 125°C. This device is commonly utilized in power supplies, consumer electronics, and industrial control systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 4-Circular, WOM |
| Mounting Type | Through Hole |
| Diode Type | Single Phase |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Technology | Standard |
| Supplier Device Package | WOM |
| Voltage - Peak Reverse (Max) | 200 V |
| Current - Average Rectified (Io) | 1.5 A |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 1.5 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 200 V |
