W01M-BP
BRIDGE RECT 1PHASE 100V 1.5A WOMManufacturer: Micro Commercial Co
Categories: Bridge Rectifiers
Quality Control: Learn More

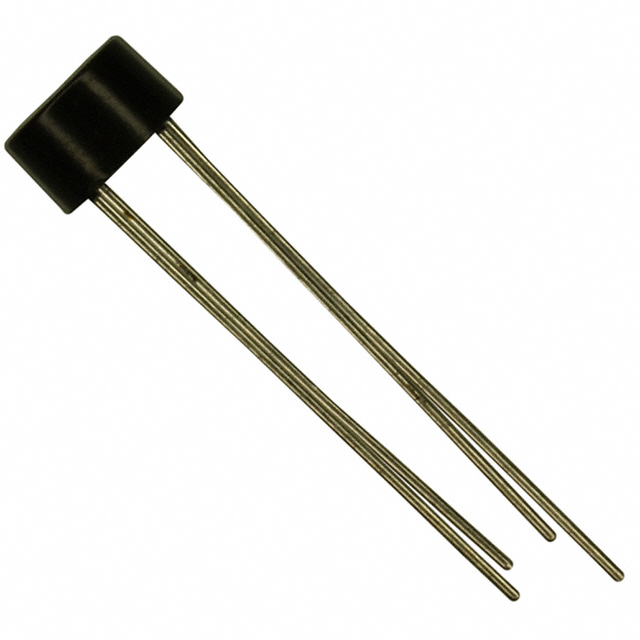

The Micro Commercial Co. W01M-BP is a single-phase bridge rectifier designed for standard rectification applications. This through-hole component features a maximum reverse voltage (Vrrm) of 100V and an average rectified forward current (Io) of 1.5A. The forward voltage drop (Vf) is specified at 1V maximum at 1.5A, with a reverse leakage current (Ir) of 10 µA at 100V. Operating across a wide temperature range from -55°C to 125°C (TJ), the W01M-BP is housed in a 4-lead circular WOM (Wire-on-Mount) package, commonly supplied in bulk packaging. This component is suitable for power supply circuits and general-purpose rectification in industrial and consumer electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 4-Circular, WOM |
| Mounting Type | Through Hole |
| Diode Type | Single Phase |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Technology | Standard |
| Supplier Device Package | WOM |
| Voltage - Peak Reverse (Max) | 100 V |
| Current - Average Rectified (Io) | 1.5 A |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 1.5 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 100 V |
