SDB204-TP
BRIDGE RECT 1PHASE 400V 2A SDB-1Manufacturer: Micro Commercial Co
Categories: Bridge Rectifiers
Quality Control: Learn More

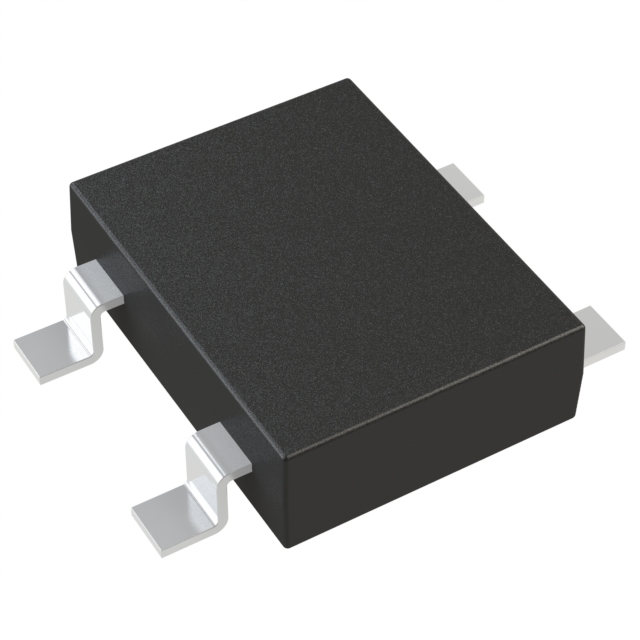

Micro Commercial Co SDB204-TP is a single-phase bridge rectifier designed for robust power conversion applications. This component features a standard rectifier technology with a maximum repetitive peak reverse voltage of 400V and a continuous average forward current rating of 2A. The forward voltage drop is specified at 1.2V maximum at 2A. Reverse leakage current is a low 10 µA at 400V. The SDB-1 package, a 4-SMD gull wing design, facilitates efficient surface mounting, suitable for automated assembly processes. Operating temperature ranges from -55°C to 150°C (TJ). This device is commonly employed in power supplies, industrial controls, and consumer electronics where reliable AC to DC conversion is critical. The component is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, Gull Wing |
| Mounting Type | Surface Mount |
| Diode Type | Single Phase |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | Standard |
| Supplier Device Package | SDB-1 |
| Voltage - Peak Reverse (Max) | 400 V |
| Current - Average Rectified (Io) | 2 A |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 2 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 400 V |
Request a Quote
