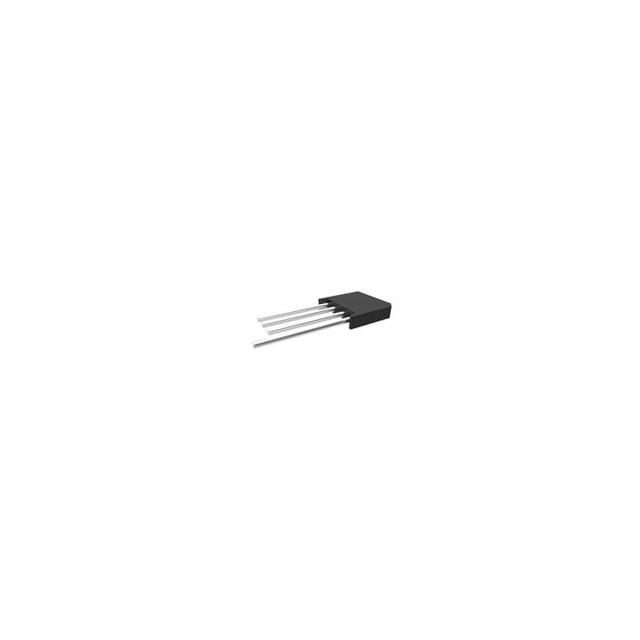

RS406L
BRIDGE RECT 1PHASE 800V 4A RS-4LManufacturer: Micro Commercial Co
Categories: Bridge Rectifiers
Quality Control: Learn More
Micro Commercial Co RS406L is a single-phase bridge rectifier designed for robust power applications. This component features an impressive 800V peak reverse voltage rating and a continuous average rectified output current of 4A. The RS406L exhibits a low forward voltage drop of 1.1V at 3A and a minimal reverse leakage current of 10µA at its maximum reverse voltage. Housed in a through-hole 4-SIP (RS-4L) package, it operates reliably across a wide temperature range of -55°C to 125°C. This device is commonly employed in power supplies, industrial automation, and consumer electronics where efficient AC to DC conversion is critical.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 4-SIP, RS-4L |
| Mounting Type | Through Hole |
| Diode Type | Single Phase |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Technology | Standard |
| Supplier Device Package | RS-4L |
| Voltage - Peak Reverse (Max) | 800 V |
| Current - Average Rectified (Io) | 4 A |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 3 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 800 V |
