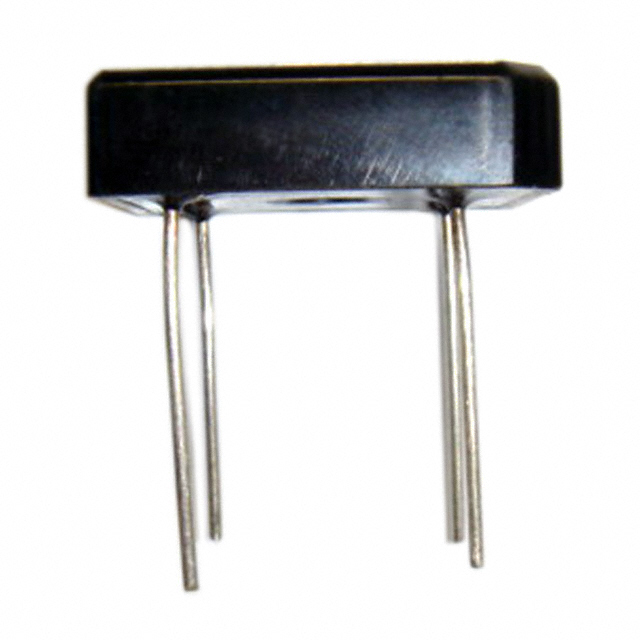

PB61-BP
BRIDGE RECT 1PHASE 100V 6A PB-6Manufacturer: Micro Commercial Co
Categories: Bridge Rectifiers
Quality Control: Learn More
Micro Commercial Co PB61-BP is a single-phase bridge rectifier designed for general-purpose AC to DC conversion. This through-hole component features a maximum reverse voltage rating of 100V and an average rectified forward current capability of 6A. The PB-6 package offers a 4-square configuration suitable for various power supply and rectification applications. With a maximum forward voltage drop of 1.1V at 3A and a low reverse leakage current of 10 µA at 100V, the PB61-BP provides efficient rectification. Its operating temperature range of -55°C to 150°C (TJ) makes it suitable for industrial and commercial equipment. This component is commonly utilized in power supplies, lighting systems, and consumer electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: Not For New DesignsPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 4-Square, PB-6 |
| Mounting Type | Through Hole |
| Diode Type | Single Phase |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | Standard |
| Supplier Device Package | PB-6 |
| Voltage - Peak Reverse (Max) | 100 V |
| Current - Average Rectified (Io) | 6 A |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 3 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 100 V |
