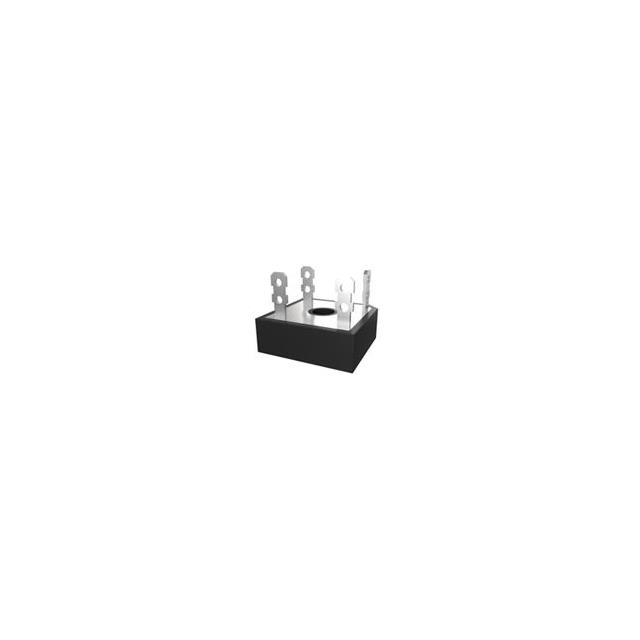

MP508
BRIDGE RECT 1P 800V 50A MP-50Manufacturer: Micro Commercial Co
Categories: Bridge Rectifiers
Quality Control: Learn More
Micro Commercial Co's MP508 is a single-phase, standard bridge rectifier designed for high-power applications. This component features a robust MP-50 package with QC terminals for efficient mounting and connection. It boasts a peak reverse voltage rating of 800V and a significant average rectified forward current capacity of 50A. The forward voltage drop is specified at a maximum of 1.2V at 25A, with a low reverse leakage current of 10 µA at its maximum rated reverse voltage. Operating across a temperature range of -50°C to 150°C (TJ), the MP508 is suitable for demanding industrial and power supply environments. Its construction and specifications make it a reliable choice for power conversion circuits in sectors such as industrial automation, power management, and consumer electronics.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 4-Square, MP-50 |
| Mounting Type | QC Terminal |
| Diode Type | Single Phase |
| Operating Temperature | -50°C ~ 150°C (TJ) |
| Technology | Standard |
| Supplier Device Package | MP-50 |
| Voltage - Peak Reverse (Max) | 800 V |
| Current - Average Rectified (Io) | 50 A |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 25 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 800 V |
