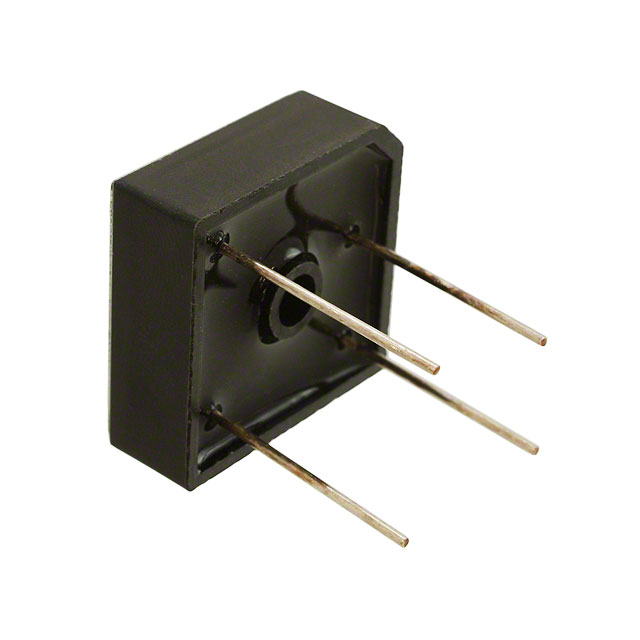

MP504W-BP
BRIDGE RECT 1P 400V 50A MP-50WWManufacturer: Micro Commercial Co
Categories: Bridge Rectifiers
Quality Control: Learn More
The Micro Commercial Co MP504W-BP is a single-phase standard bridge rectifier designed for robust power applications. This through-hole component, housed in the MP-50W package, offers a peak reverse voltage of 400 V and a significant average rectified current handling capability of 50 A. With a maximum forward voltage drop of 1.2 V at 25 A and a low reverse leakage current of 10 µA at 400 V, it provides efficient rectification. The device operates across a wide temperature range from -50°C to 150°C (TJ). This component is commonly utilized in power supplies, industrial motor controls, and welding equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: Not For New DesignsPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 4-Square, MP-50W |
| Mounting Type | Through Hole |
| Diode Type | Single Phase |
| Operating Temperature | -50°C ~ 150°C (TJ) |
| Technology | Standard |
| Supplier Device Package | MP-50W |
| Voltage - Peak Reverse (Max) | 400 V |
| Current - Average Rectified (Io) | 50 A |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 25 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 400 V |
