MP358-BP
InterfaceManufacturer: Micro Commercial Co
Categories: Bridge Rectifiers
Quality Control: Learn More

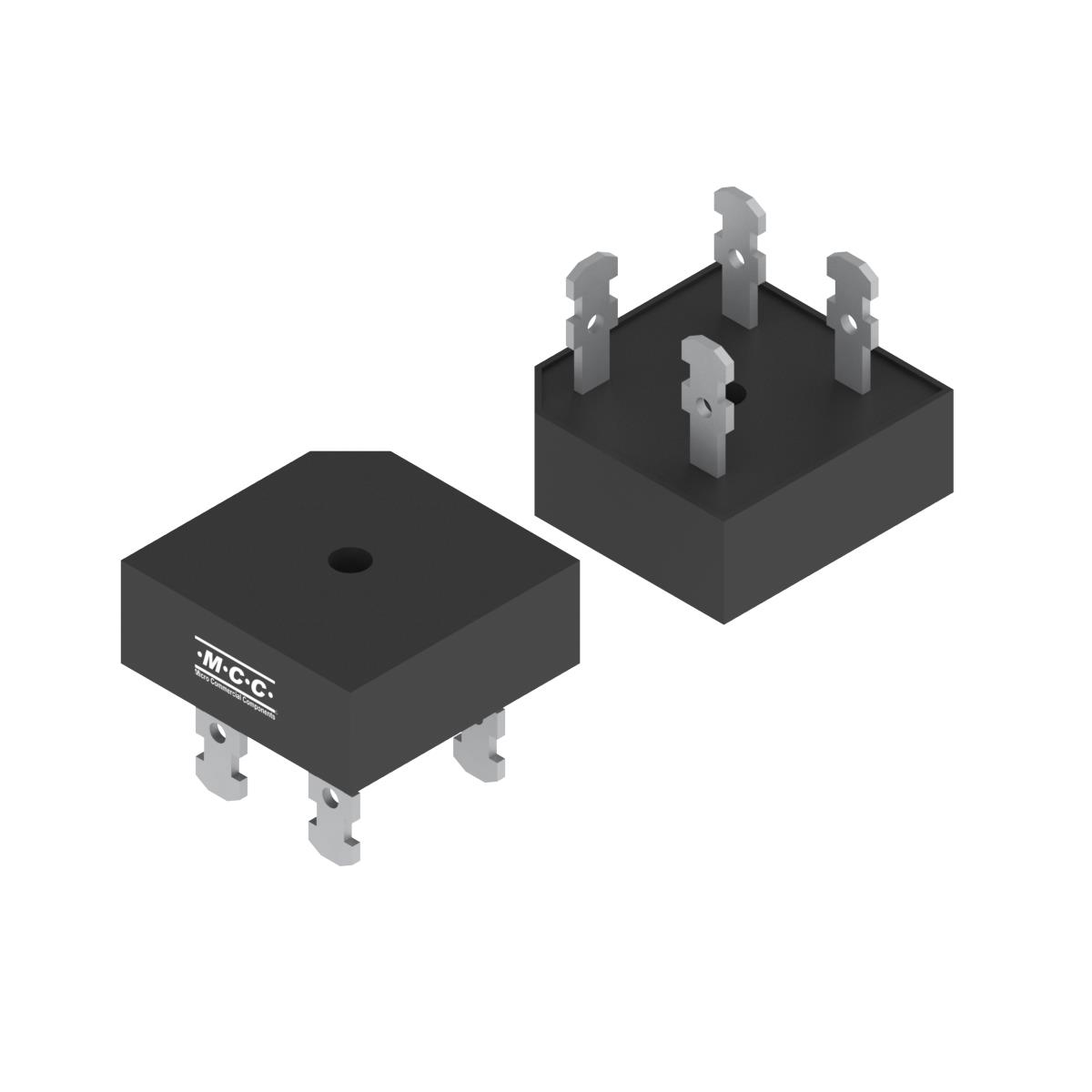

The Micro Commercial Co. MP358-BP is a single-phase, standard bridge rectifier designed for robust power applications. This through-hole component, housed in a 4-SIP KBJL package, offers a peak reverse voltage rating of 800 V and a maximum forward voltage drop of 1.1 V at 17.5 A. It is capable of handling an average rectified current (Io) of 35 A, with a low reverse leakage current of 5 µA at its maximum rated voltage. The operating temperature range extends from -55°C to 150°C, ensuring reliability in demanding environments. Commonly employed in power supplies, motor control, and industrial automation, this rectifier is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: 10 week(s)Product Status: Not For New DesignsPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 4-SIP, KBJL |
| Mounting Type | Through Hole |
| Diode Type | Single Phase |
| Operating Temperature | -55°C ~ 150°C |
| Technology | Standard |
| Supplier Device Package | KBJL |
| Voltage - Peak Reverse (Max) | 800 V |
| Current - Average Rectified (Io) | 35 A |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 17.5 A |
| Current - Reverse Leakage @ Vr | 5 µA @ 800 V |
