MBL2S-TP
InterfaceManufacturer: Micro Commercial Co
Categories: Bridge Rectifiers
Quality Control: Learn More

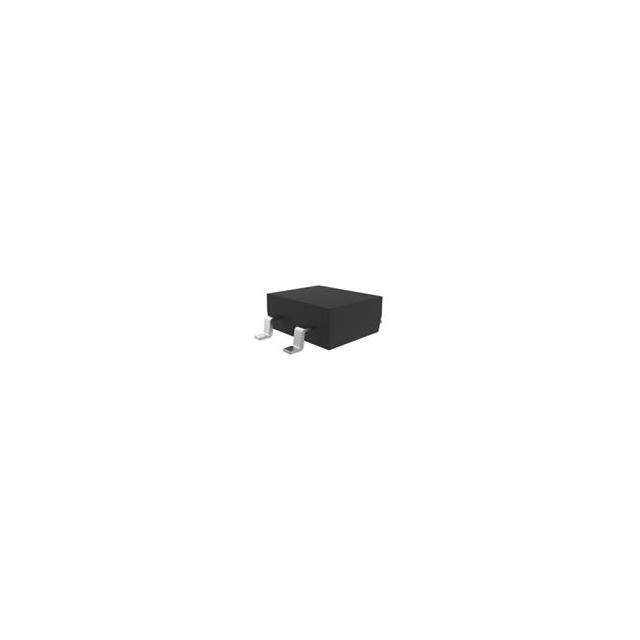

Micro Commercial Co MBL2S-TP is a single-phase bridge rectifier designed for standard rectification applications. This surface mount component, housed in a 4-SMD Gull Wing package (MBLS-1), offers a peak reverse voltage capability of 200 V. It features an average rectified forward current (Io) of 500 mA and a low reverse leakage current of 10 µA at its maximum reverse voltage. The forward voltage drop (Vf) is a maximum of 1 V at 400 mA. Operating across a wide temperature range of -55°C to 150°C (TJ), this rectifier is suitable for use in industrial and consumer electronics where reliable AC to DC conversion is required. The MBL2S-TP is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: 14 week(s)Product Status: Not For New DesignsPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 4-SMD, Gull Wing |
| Mounting Type | Surface Mount |
| Diode Type | Single Phase |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | Standard |
| Supplier Device Package | MBLS-1 |
| Voltage - Peak Reverse (Max) | 200 V |
| Current - Average Rectified (Io) | 500 mA |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 400 mA |
| Current - Reverse Leakage @ Vr | 10 µA @ 200 V |
