MB84-BP
BRIDGE RECT 1PHASE 400V 8A BR-6Manufacturer: Micro Commercial Co
Categories: Bridge Rectifiers
Quality Control: Learn More

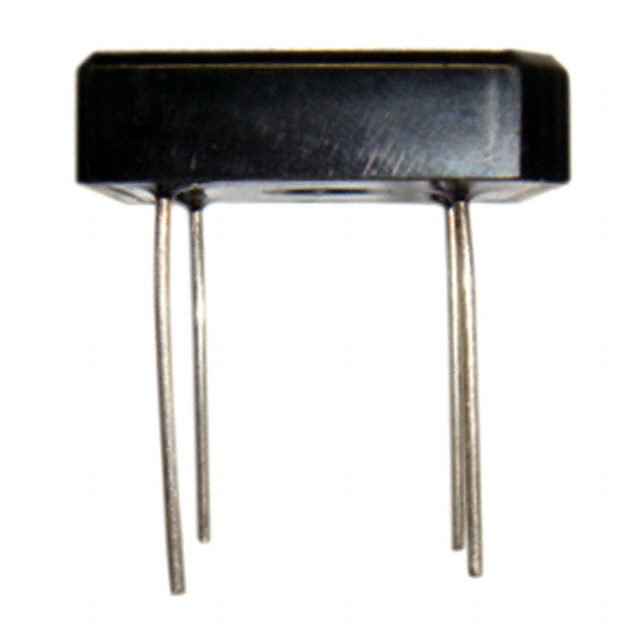

Micro Commercial Co MB84-BP is a single-phase bridge rectifier designed for robust power rectification applications. This component features a standard recovery technology and is housed in a Through Hole BR-6 package. It offers an average forward current (Io) of 8 A and a peak reverse voltage rating of 400 V. The forward voltage drop (Vf) is a maximum of 1.1 V at 4 A, with a low reverse leakage current of 10 µA at 400 V. Operating across a temperature range of -55°C to 125°C (TJ), this rectifier is suitable for industrial automation, power supplies, and motor control systems. The component is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 4-Square, BR-6 |
| Mounting Type | Through Hole |
| Diode Type | Single Phase |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Technology | Standard |
| Supplier Device Package | BR-6 |
| Voltage - Peak Reverse (Max) | 400 V |
| Current - Average Rectified (Io) | 8 A |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 4 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 400 V |
