MB810
BRIDGE RECT 1PHASE 1KV 8A BR-6Manufacturer: Micro Commercial Co
Categories: Bridge Rectifiers
Quality Control: Learn More

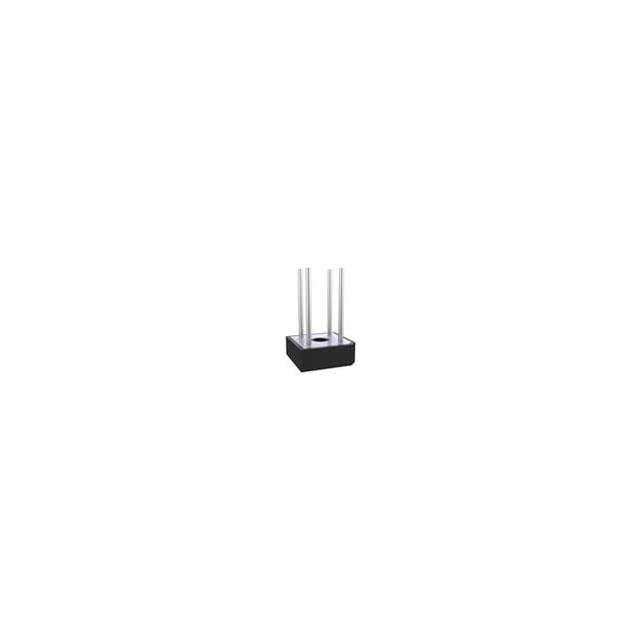

The Micro Commercial Co MB810 is a single-phase bridge rectifier. This component features a peak reverse voltage rating of 1 kV and an average rectified current handling capability of 8 A. The forward voltage drop is a maximum of 1.1 V at 4 A, with a reverse leakage current of 10 µA at 1000 V. Designed with a standard recovery technology, the MB810 is housed in a through-hole BR-6 package, also known as a 4-square case. Its operating temperature range spans from -55°C to 125°C. This device is commonly utilized in power supply units, industrial motor controls, and general rectification applications. It is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 4-Square, BR-6 |
| Mounting Type | Through Hole |
| Diode Type | Single Phase |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Technology | Standard |
| Supplier Device Package | BR-6 |
| Voltage - Peak Reverse (Max) | 1 kV |
| Current - Average Rectified (Io) | 8 A |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 4 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 1000 V |
