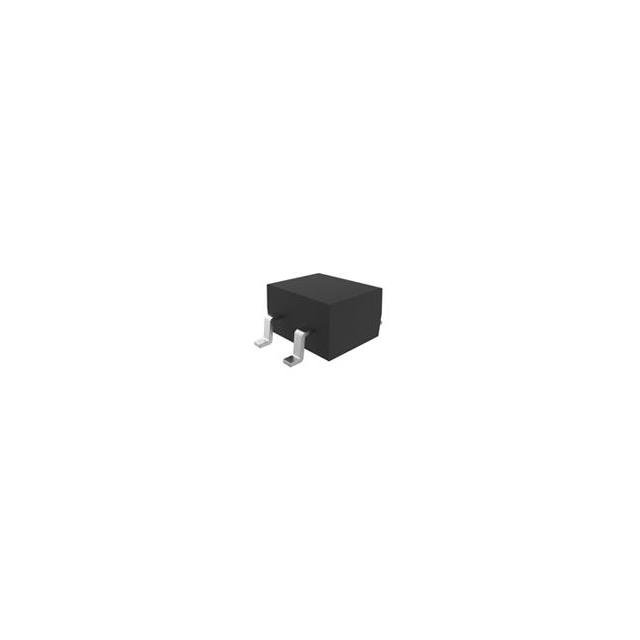

MB22S-TP
BRIDGE RECT 20V 2A MBS-1Manufacturer: Micro Commercial Co
Categories: Bridge Rectifiers
Quality Control: Learn More
Micro Commercial Co MB22S-TP is a single-phase Schottky bridge rectifier with a maximum reverse voltage of 20 V and an average rectified forward current of 2 A. This device features a low forward voltage drop of 500 mV at 2 A and a reverse leakage current of 500 µA at 20 V. The MB22S-TP is designed for surface mount applications, utilizing the TO-269AA (4-BESOP) package. Operating temperature ranges from -55°C to 150°C (TJ). This component is commonly employed in power supply circuits, automotive electronics, and industrial control systems. The device is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-269AA, 4-BESOP |
| Mounting Type | Surface Mount |
| Diode Type | Single Phase |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | Schottky |
| Supplier Device Package | MBS-1 |
| Voltage - Peak Reverse (Max) | 20 V |
| Current - Average Rectified (Io) | 2 A |
| Voltage - Forward (Vf) (Max) @ If | 500 mV @ 2 A |
| Current - Reverse Leakage @ Vr | 500 µA @ 20 V |
