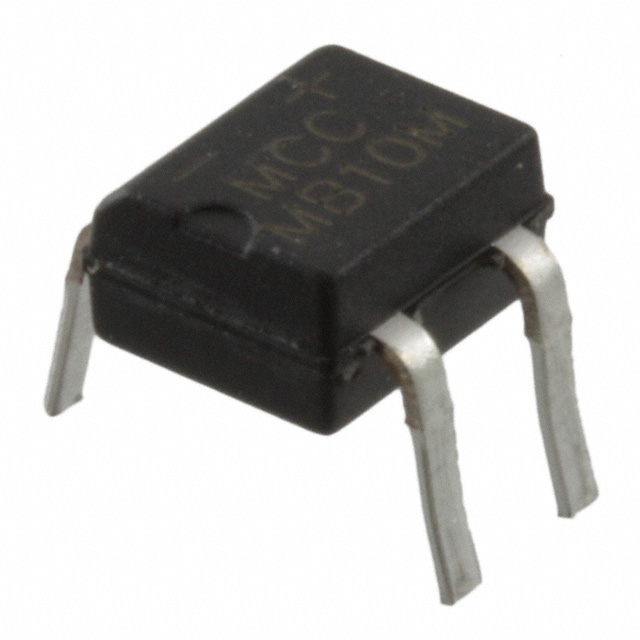

MB10M-BP
BRIDGE RECT 1P 1KV 500MA MB-1Manufacturer: Micro Commercial Co
Categories: Bridge Rectifiers
Quality Control: Learn More
Bridge Rectifier Single Phase Standard 1 kV Through Hole MB-1
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 4-DIP (0.200"", 5.08mm) |
| Mounting Type | Through Hole |
| Diode Type | Single Phase |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | Standard |
| Supplier Device Package | MB-1 |
| Voltage - Peak Reverse (Max) | 1 kV |
| Current - Average Rectified (Io) | 500 mA |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 400 mA |
| Current - Reverse Leakage @ Vr | 5 µA @ 1000 V |
