MMC3143MS
MAGNETIC SENSOR 3-AXISManufacturer: Memsic Inc.
Categories: Linear, Compass (ICs)
Quality Control: Learn More
The Memsic Inc. MMC3143MS is a 3-axis magnetoresistive sensor designed for robust magnetic field detection. This component offers precise X, Y, and Z axis measurements with a sensing range of ±0.4mT, critical for applications requiring accurate directional and positional information. Operating from a supply voltage of 2.7V to 5.25V, the MMC3143MS consumes a maximum of 550µA, making it suitable for power-sensitive designs.
Key features include temperature compensation for stable performance across its operating temperature range of -40°C to 85°C, and an I2C output interface for straightforward integration with microcontrollers. The sensor's 10-LGA (3.05x3.05) package with an exposed pad facilitates surface mounting and efficient thermal management. This device is commonly employed in consumer electronics, automotive systems, and industrial automation where precise magnetic sensing is paramount. The bandwidth is specified at 25Hz.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-TFLGA Exposed Pad |
| Output Type | I2C |
| Mounting Type | Surface Mount |
| Axis | X, Y, Z |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2.7V ~ 5.25V |
| Bandwidth | 25Hz |
| Technology | Magnetoresistive |
| Resolution | - |
| Sensing Range | ±0.4mT |
| Current - Output (Max) | - |
| Current - Supply (Max) | 550µA |
| Supplier Device Package | 10-LGA (3.05x3.05) |
Request a Quote
Clients Also Buy
MMC3416XPJ
IC
MMC33160MT
SENSOR MR I2C 10LGA

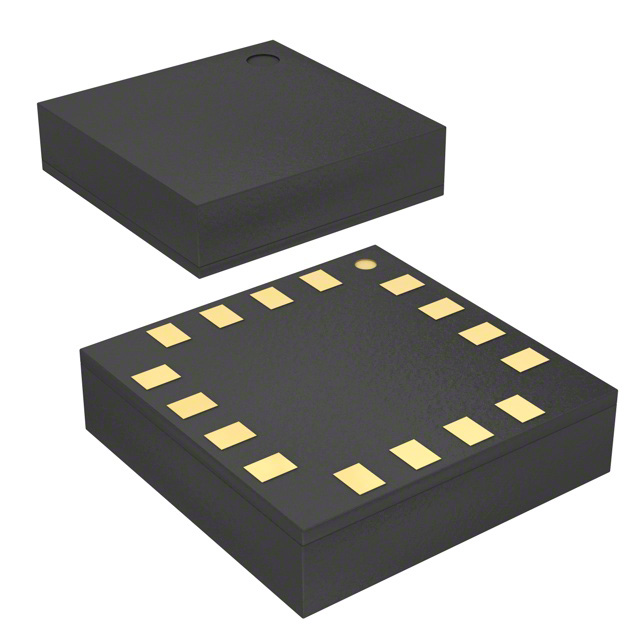

MMC5983MA
