MC3672
3-AXIS IOMT ACCELEROMETER (WLCSPManufacturer: Memsic Inc.
Categories: Accelerometers
Quality Control: Learn More

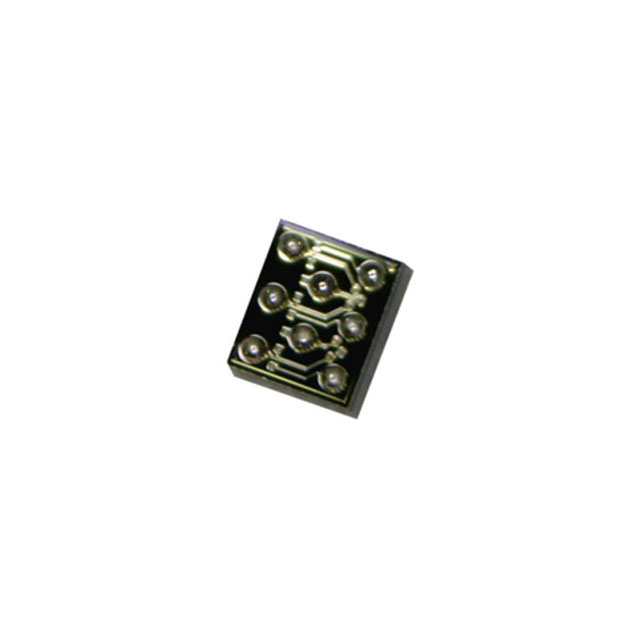

Memsic Inc. MC3672 is a 3-axis digital accelerometer designed for high-performance motion sensing applications. This component offers selectable acceleration ranges of ±2g, ±4g, ±8g, ±12g, and ±16g, providing flexibility for various design requirements. The MC3672 features I2C and SPI serial interfaces for efficient data communication and includes a low-power sleep mode to optimize energy consumption. Its 8-CSP (1.29x1.09) package is suitable for space-constrained designs. With a sensitivity of 4096 LSB/g at ±2g, the device ensures precise measurement accuracy. The operating temperature range of -40°C to 85°C makes it robust for deployment in demanding environments. This accelerometer is utilized across industries such as consumer electronics, industrial automation, and automotive systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Sleep Mode |
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-WFBGA, CSPBGA |
| Output Type | I2C, SPI |
| Mounting Type | Surface Mount |
| Type | Digital |
| Axis | X, Y, Z |
| Acceleration Range | ±2g, 4g, 8g, 12g, 16g |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 1.7V ~ 3.6V |
| Bandwidth | - |
| Supplier Device Package | 8-CSP (1.29x1.09) |
| Sensitivity (LSB/g) | 4096 (±2g) ~ 8 (±16g) |
| Sensitivity (mV/g) | - |
