MLX90817LXE-DBG-012-RE
SENSOR 14DFNManufacturer: Melexis Technologies NV
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
Melexis Technologies NV MLX90817LXE-DBG-012-RE is an absolute pressure sensor designed for surface mount applications. This component, housed in a 14-BFDFN exposed pad package, offers an analog voltage output with temperature compensation and amplified output features. It operates within a supply voltage range of 4.5V to 5.5V and supports an extended operating temperature range of -40°C to 150°C. The sensor is suitable for board mounting and is supplied in tape and reel packaging. Its robust design makes it well-suited for demanding applications in the automotive and industrial sectors requiring reliable pressure measurement.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Amplified Output, Temperature Compensated |
| Packaging | Tape & Reel (TR) |
| Package / Case | 14-BFDFN Exposed Pad |
| Output Type | Analog Voltage |
| Mounting Type | Surface Mount |
| Output | - |
| Operating Pressure | - |
| Pressure Type | Absolute |
| Accuracy | - |
| Operating Temperature | -40°C ~ 150°C |
| Termination Style | SMD (SMT) Tab |
| Voltage - Supply | 4.5V ~ 5.5V |
| Port Size | - |
| Applications | Board Mount |
| Supplier Device Package | 14-DFN (4x5) |
| Port Style | No Port |
| Maximum Pressure | - |
Request a Quote
Clients Also Buy

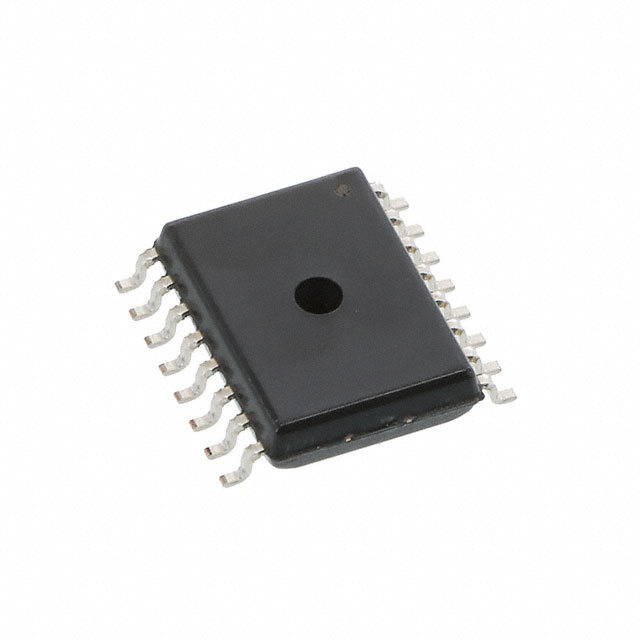

MLX90825GXP-DAD-302-SP
RELATIVE PRESSURE SENSOR WITH SE
MLX90824GXP-DAC-300-RE
0.1 TO 1.15BAR ABSOLUTE PRESSURE

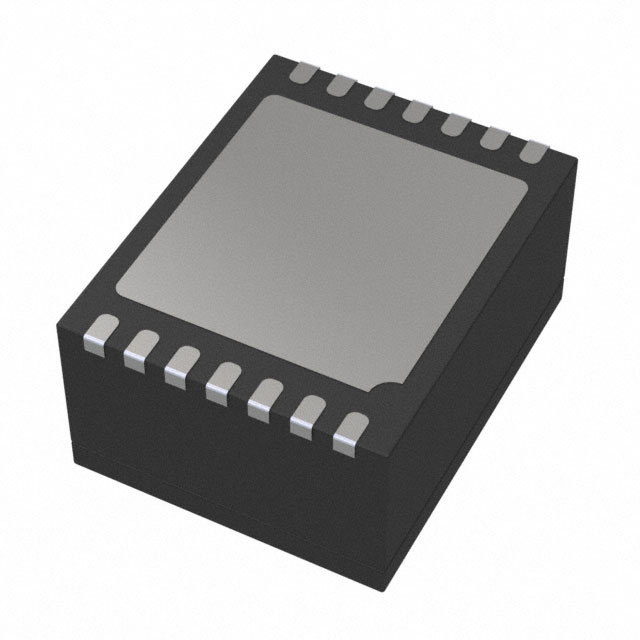

MLX90817LXE-DBH-008-RE
