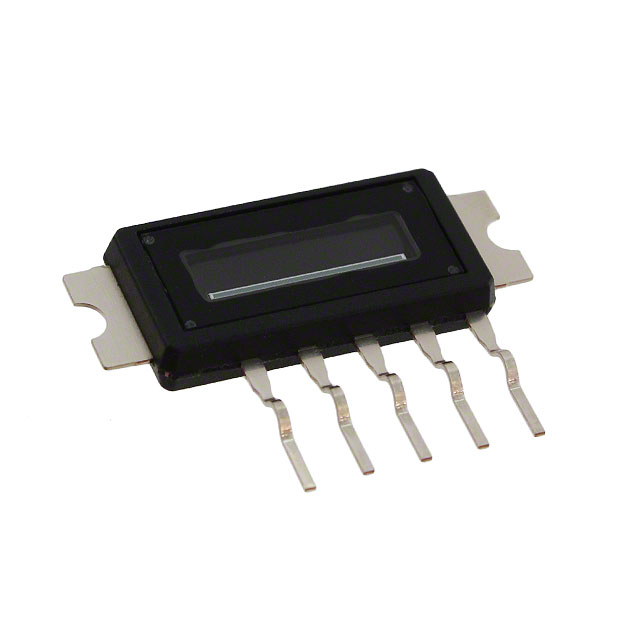

MLX90255KWB-BAM-000-TR
SENSOR PHOTODIODE 880NM 5SIP MODManufacturer: Melexis Technologies NV
Categories: Photodiodes
Quality Control: Learn More
The Melexis Technologies NV MLX90255KWB-BAM-000-TR is an advanced photodiode module designed for precise optical sensing applications. This component features a spectral range of 400nm to 1000nm, with peak sensitivity at 880nm, making it suitable for applications requiring detection in the near-infrared spectrum. The active sensing area measures 200µm in height by 66.0µm in width. Packaged in a 5-SIP module, it is designed for through-hole mounting, offering robust integration into various electronic systems. The operating temperature range spans from -40°C to 125°C, ensuring reliable performance in demanding environments. This photodiode module finds utility in industrial automation, medical devices, and security systems where accurate light detection is critical. Supplied in tray packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 5-SIP Module |
| Wavelength | 880nm |
| Mounting Type | Through Hole |
| Diode Type | - |
| Operating Temperature | -40°C ~ 125°C |
| Response Time | - |
| Viewing Angle | - |
| Spectral Range | 400nm ~ 1000nm |
| Color - Enhanced | - |
| Responsivity @ nm | - |
| Active Area | 200µm H x 66.0µm W |
| Current - Dark (Typ) | - |
