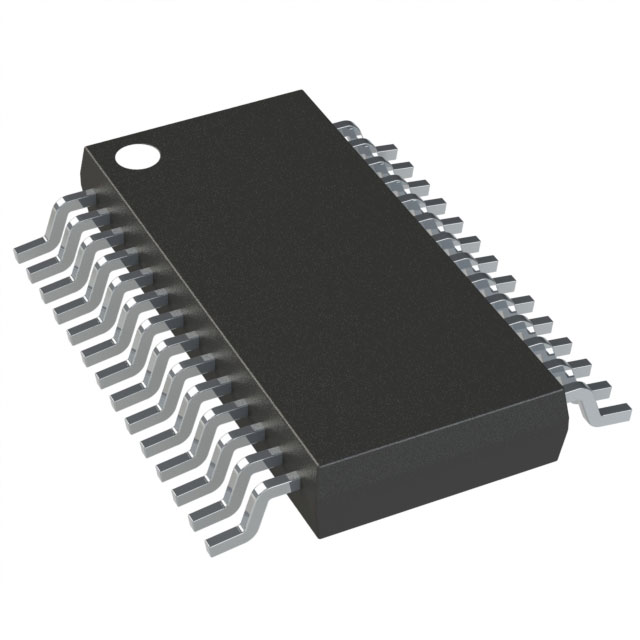

MLX83100LGO-DBA-000-RE
IC GATE DRVR HALF-BRIDGE 28TSSOPManufacturer: Melexis Technologies NV
Categories: Gate Drivers
Quality Control: Learn More
Melexis Technologies NV MLX83100LGO-DBA-000-RE is a half-bridge gate driver IC designed for automotive applications. This AEC-Q100 qualified component features independent channels and supports N-channel MOSFET gate drive. It provides peak output currents of 1.4A source and 1.6A sink, with typical rise and fall times of 7ns. The device operates over a supply voltage range of 4.5V to 28V and an extended junction temperature range of -40°C to 175°C. Packaged in a 28-TSSOP-EP (Exposed Pad) with dimensions of 4.40mm width, it is supplied on tape and reel. This component is suitable for applications requiring efficient control of power MOSFETs in half-bridge configurations.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 28-TSSOP (0.173"", 4.40mm Width) Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Voltage - Supply | 4.5V ~ 28V |
| Input Type | - |
| Supplier Device Package | 28-TSSOP-EP |
| Rise / Fall Time (Typ) | 7ns, 7ns |
| Channel Type | Independent |
| Driven Configuration | Half-Bridge |
| Number of Drivers | 4 |
| Gate Type | N-Channel MOSFET |
| Logic Voltage - VIL, VIH | - |
| Current - Peak Output (Source, Sink) | 1.4A, 1.6A |
| Grade | Automotive |
| Programmable | Not Verified |
| Qualification | AEC-Q100 |
Request a Quote
Clients Also Buy

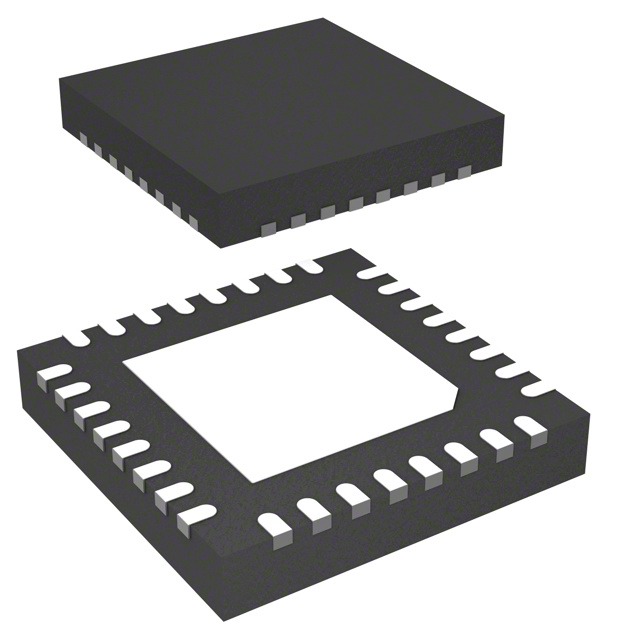

MLX83203KLW-DBA-000-RE
