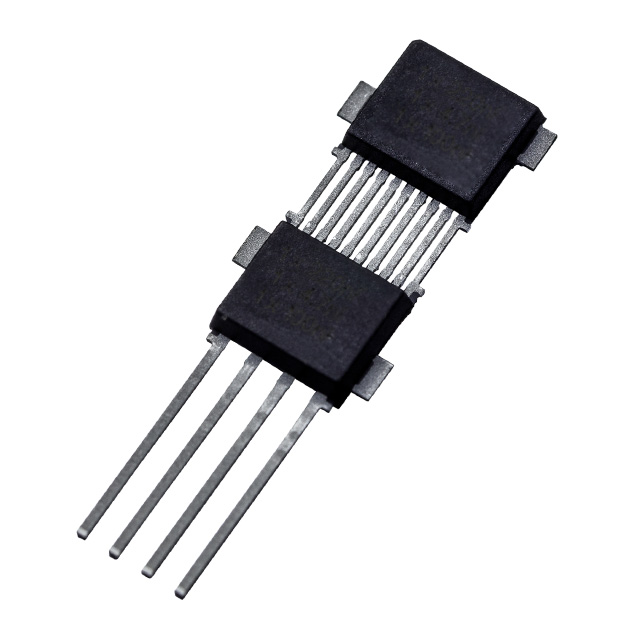

MLX90366LVS-ADS-250-RE
SENSOR ROTARY 360DEG PC PINManufacturer: Melexis Technologies NV
Categories: Angle, Linear Position Measuring
Quality Control: Learn More
Melexis Technologies NV MLX90366LVS-ADS-250-RE is a Triaxis® Hall effect sensor designed for 360-degree rotary position measurement. This device utilizes an external magnet actuator, not included, to provide continuous position feedback. The output signal is SENT (Single Edge Nibble Transmission), a robust digital protocol suitable for automotive and industrial applications. With a supply voltage range of 4.5V to 5.5V and an operating temperature range of -40°C to 150°C, the MLX90366LVS-ADS-250-RE is engineered for demanding environments. Its PC pin termination and 4-DMP package facilitate through-hole mounting. This component is commonly found in automotive steering angle sensing, industrial automation, and motor control systems where precise, non-contact angular position detection is critical.
Additional Information
Series: Triaxis®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 40 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SSIP Module |
| Mounting Type | Through Hole |
| Output | SENT |
| Operating Temperature | -40°C ~ 150°C |
| Termination Style | PC Pin |
| Voltage - Supply | 4.5V ~ 5.5V |
| Linearity | - |
| Linear Range | - |
| Actuator Type | External Magnet, Not Included |
| Technology | Hall Effect |
| Resistance Tolerance | - |
| For Measuring | Linear, Rotary Position |
| Supplier Device Package | 4-DMP |
| Rotation Angle - Electrical, Mechanical | 0° ~ 360°, Continuous |
| Output Signal | - |
| Programmable | - |
