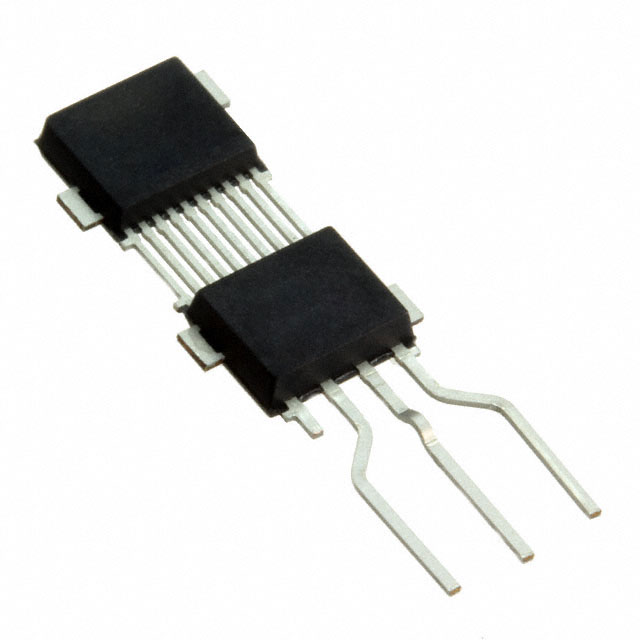

MLX90364LVS-ADD-203-RX
SENSOR ROTARY 360DEG PC PINManufacturer: Melexis Technologies NV
Categories: Angle, Linear Position Measuring
Quality Control: Learn More
Melexis Technologies NV MLX90364LVS-ADD-203-RX is a Triaxis® Hall Effect sensor designed for 360-degree rotary position measurement. This automotive-grade component, qualified to AEC-Q100, utilizes a Hall effect technology and requires an external magnet (not included) for operation. The sensor provides continuous rotation measurement across a full 360 degrees with a linearity of ±2.5°. It features PC pin termination for through-hole mounting and is supplied in a 4-DMP package, delivered on tape and reel. The output options include analog and PWM signals, with a supply voltage range of 4.5V to 5.5V. This device is suitable for applications in automotive systems and general industrial automation requiring precise angular sensing.
Additional Information
Series: Triaxis®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 40 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SIP Module, Formed Leads |
| Mounting Type | Through Hole |
| Output | Analog, PWM |
| Operating Temperature | -40°C ~ 150°C |
| Termination Style | PC Pin |
| Voltage - Supply | 4.5V ~ 5.5V |
| Linearity | ±2.5° |
| Linear Range | - |
| Actuator Type | External Magnet, Not Included |
| Technology | Hall Effect |
| Resistance Tolerance | - |
| For Measuring | Linear, Rotary Position |
| Supplier Device Package | 4-DMP |
| Rotation Angle - Electrical, Mechanical | 0° ~ 360°, Continuous |
| Output Signal | - |
| Grade | Automotive |
| Programmable | - |
| Qualification | AEC-Q100 |
