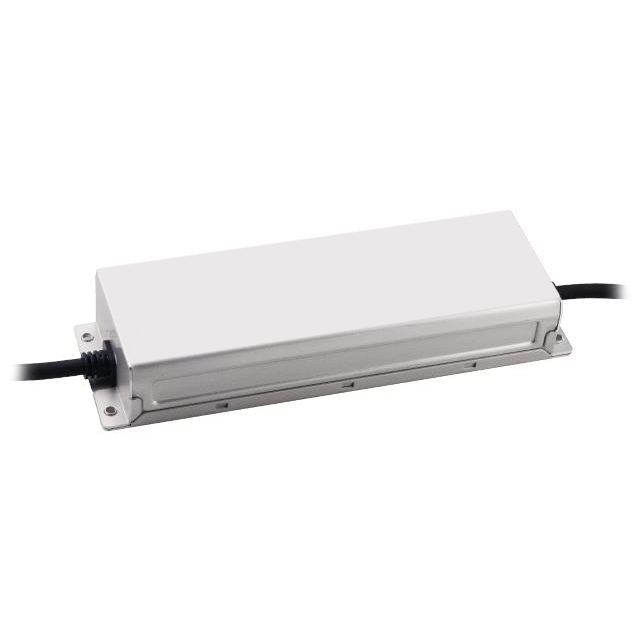

XLG-320-H-DA2
O/P +27~56V 5.57~7.42AManufacturer: MEAN WELL USA Inc.
Categories: LED Drivers
Quality Control: Learn More
5.6A 30 ~ 56V Constant Power LED Driver AC DC Converter Topology 1 Output
Additional Information
Series: XLG-320-DA2 (320W)RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | OTP, OVP, SCP |
| Packaging | Box |
| Size / Dimension | 9.69"" L x 3.03"" W x 1.56"" H (246.0mm x 77.0mm x 39.5mm) |
| Voltage - Output | 30 ~ 56V |
| Type | Constant Power |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | Wire Leads |
| Voltage - Input (Max) | 305VAC |
| Approval Agency | CB, CCC, CE, cURus, EAC, ENEC, UKCA |
| Ratings | IP67 |
| Efficiency | 92.5% |
| Topology | AC DC Converter |
| Current - Output (Max) | 5.6A |
| Dimming | PWM |
| Voltage - Input (Min) | 100VAC |
| Power (Watts) | 320 W |
| Number of Outputs | 1 |
| Voltage - Isolation | 3.75 kV |
| Standard Number | UL 8750 |
Request a Quote
