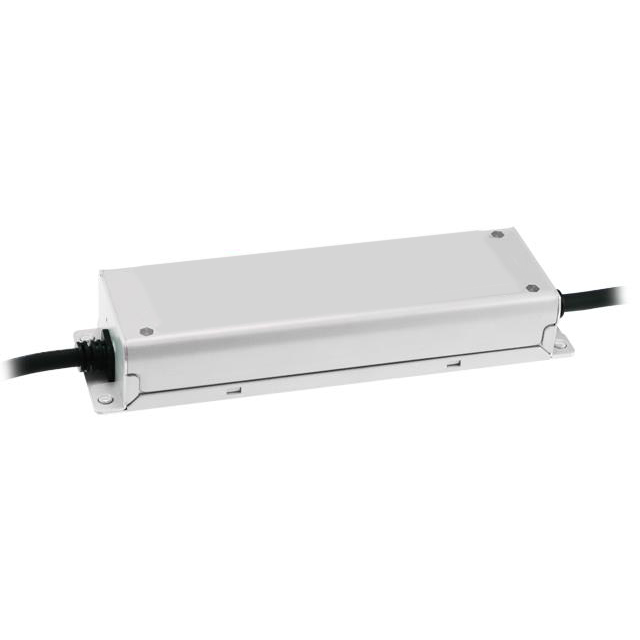

XLG-240-L-DA2
O/P +178~342V 0.7~1.05AManufacturer: MEAN WELL USA Inc.
Categories: LED Drivers
Quality Control: Learn More
700mA 178 ~ 342V Constant Power LED Driver AC DC Converter Topology 1 Output
Additional Information
Series: XLG-240-DA2 (240W)RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Box |
| Size / Dimension | 8.62"" L x 2.48"" W x 1.40"" H (219.0mm x 63.0mm x 35.5mm) |
| Voltage - Output | 178 ~ 342V |
| Type | Constant Power |
| Operating Temperature | -40°C ~ 90°C |
| Termination Style | Wire Leads |
| Voltage - Input (Max) | 305VAC |
| Approval Agency | CB, CCC, CE, cURus, EAC, ENEC, UKCA |
| Ratings | IP67 |
| Efficiency | 94% |
| Topology | AC DC Converter |
| Current - Output (Max) | 700mA |
| Dimming | PWM |
| Voltage - Input (Min) | 100VAC |
| Power (Watts) | 240 W |
| Number of Outputs | 1 |
| Voltage - Isolation | 3.75 kV |
| Standard Number | UL 8750 |
Request a Quote
Clients Also Buy

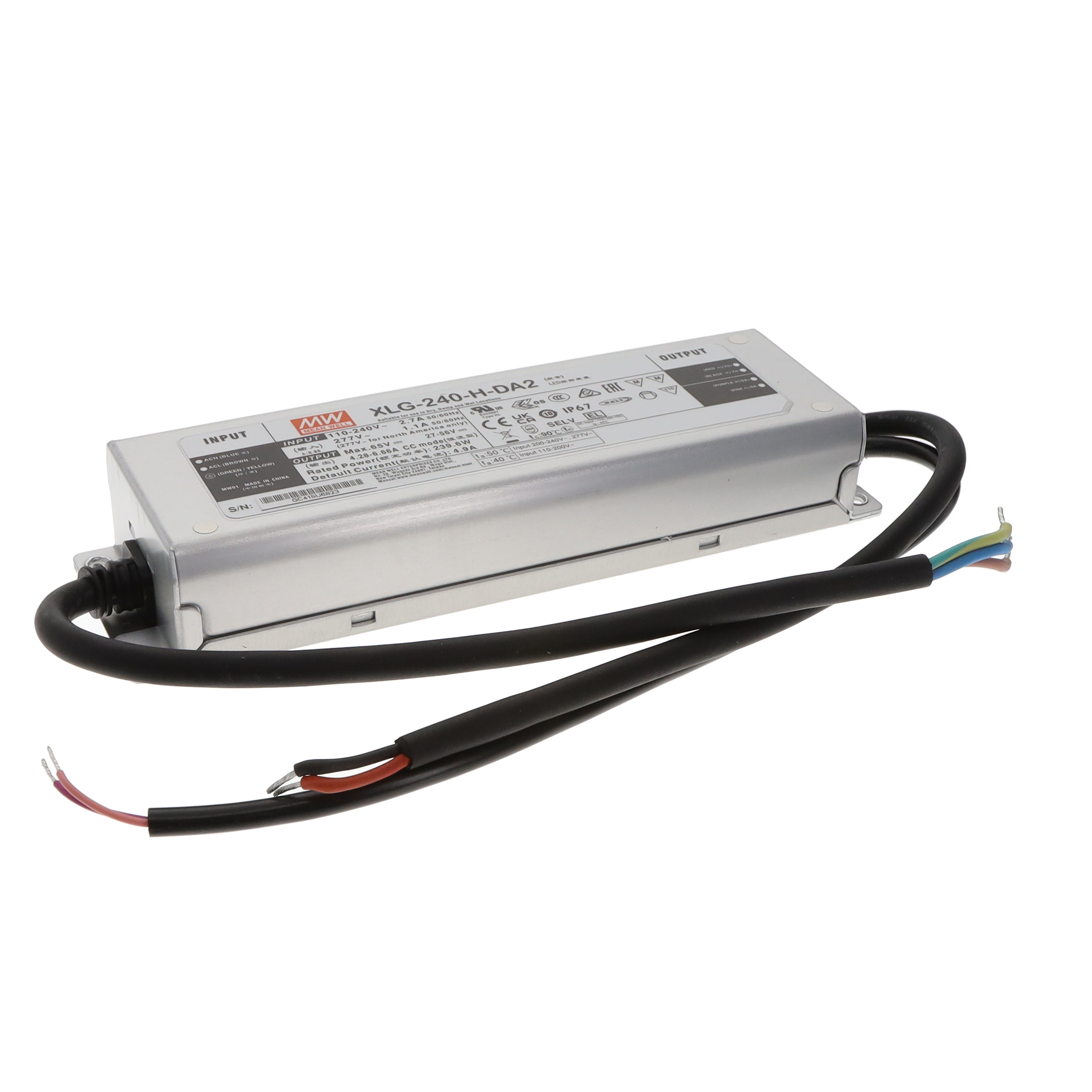

XLG-240-H-DA2
