PWM-90-12DA
LED DRIVER CV AC/DCManufacturer: MEAN WELL USA Inc.
Categories: LED Drivers
Quality Control: Learn More
MEAN WELL USA Inc. PWM-90 (90W) series constant voltage LED driver, part number PWM-90-12DA. This 90W AC/DC converter delivers a stable 12V output with a maximum current of 1.88A. Designed for universal AC input from 90VAC to 305VAC, it features 88% typical efficiency and an isolation voltage of 3.75kV. The unit includes comprehensive protection features such as OCP, OTP, OVP, and SCP for enhanced reliability. Dimming capabilities are supported via analog and PWM methods. Rated IP67, this driver is suitable for demanding applications in industrial lighting, signage, and architectural lighting. It is compliant with UL 8750 and carries multiple certifications including CB, CCC, CE, cURus, EAC, and ENEC. The device is packaged in a box with wire lead termination.
Additional Information
Series: PWM-90 (90W)RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | OCP, OTP, OVP, SCP |
| Packaging | Box |
| Size / Dimension | 6.73"" L x 2.48"" W x 1.48"" H (171.0mm x 63.0mm x 37.5mm) |
| Voltage - Output | 12V |
| Type | Constant Voltage |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | Wire Leads |
| Voltage - Input (Max) | 305VAC |
| Approval Agency | CB, CCC, CE, cURus, EAC, ENEC |
| Ratings | IP67 |
| Efficiency | 88% |
| Topology | AC DC Converter |
| Current - Output (Max) | 1.88A |
| Dimming | Analog, PWM |
| Voltage - Input (Min) | 90VAC |
| Power (Watts) | 90 W |
| Number of Outputs | 1 |
| Voltage - Isolation | 3.75 kV |
| Standard Number | UL 8750 |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy

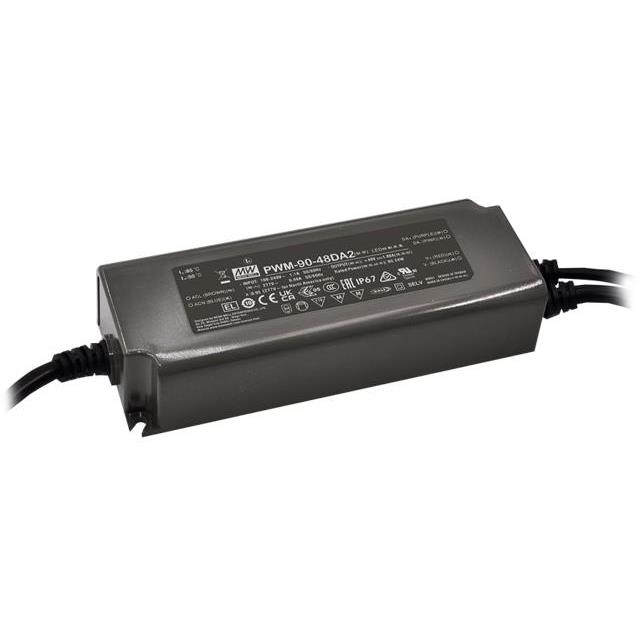

PWM-90-12
LED DRIVER CV AC/DC 12V 7.5A
PWM-90-12DA2
PWR SUPP, BATT & COND

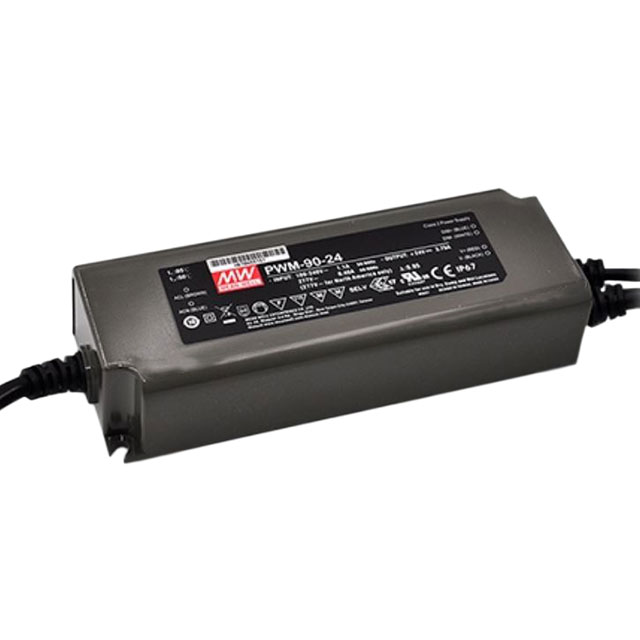

PWM-90-24
