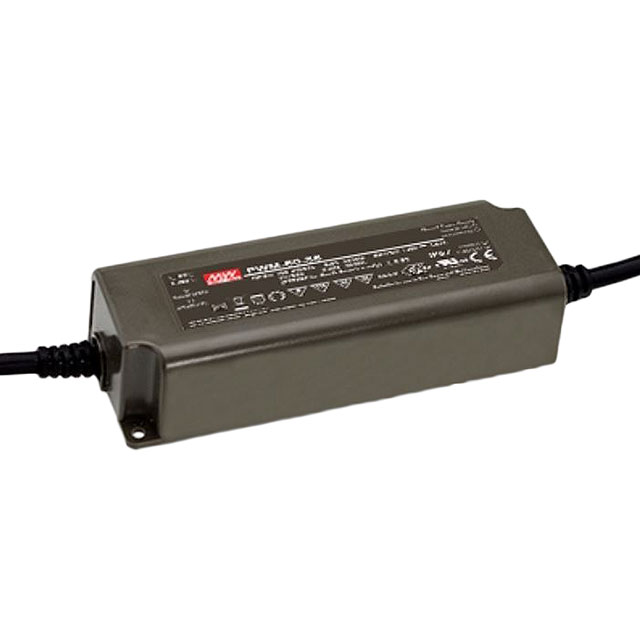

PWM-60-12DA
O/P +12V5AManufacturer: MEAN WELL USA Inc.
Categories: LED Drivers
Quality Control: Learn More
MEAN WELL USA Inc. PWM-60 (60W) series constant voltage LED driver, model PWM-60-12DA. This 60W AC DC converter topology provides a single output of 12V at a maximum of 5A. Designed for demanding applications, it features DALI dimming capabilities and an efficiency of 86%. The unit incorporates comprehensive protection features including OCP, OTP, OVP, and SCP. Its robust construction, rated IP67, and wide operating temperature range of -40°C to 85°C make it suitable for industrial and commercial lighting installations. Approvals include CB, CCC, CE, cURus, EAC, and ENEC. Dimensions are 150.0mm x 53.0mm x 35.0mm with wire lead termination.
Additional Information
Series: PWM-60 (60W)RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | OCP, OTP, OVP, SCP |
| Packaging | Box |
| Size / Dimension | 5.91"" L x 2.09"" W x 1.38"" H (150.0mm x 53.0mm x 35.0mm) |
| Voltage - Output | 12V |
| Type | Constant Voltage |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | Wire Leads |
| Voltage - Input (Max) | 305VAC |
| Approval Agency | CB, CCC, CE, cURus, EAC, ENEC |
| Ratings | IP67 |
| Efficiency | 86% |
| Topology | AC DC Converter |
| Current - Output (Max) | 5A |
| Dimming | DALI |
| Voltage - Input (Min) | 90VAC |
| Power (Watts) | 60 W |
| Number of Outputs | 1 |
| Voltage - Isolation | 3.75 kV |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy

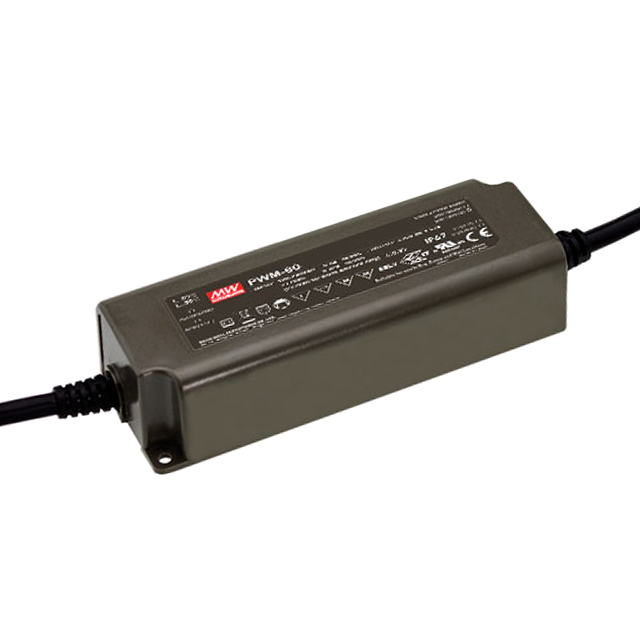

PWM-60-12
LED DRIVER CV AC/DC 12V 5A

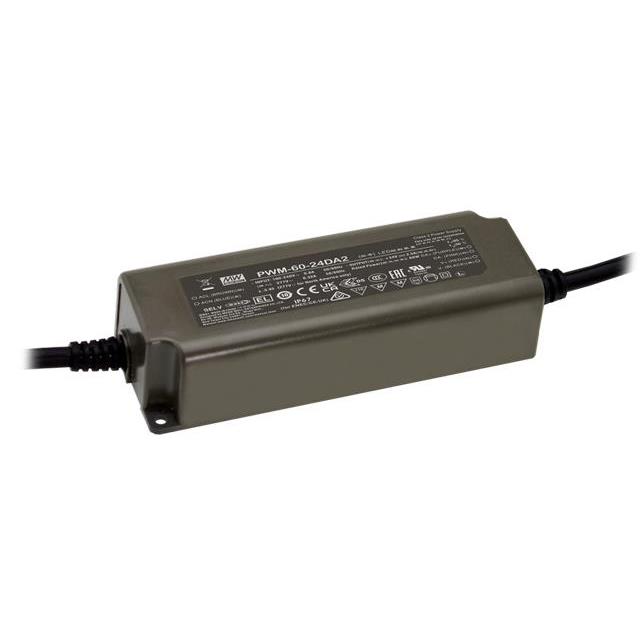

PWM-60-12DA2
