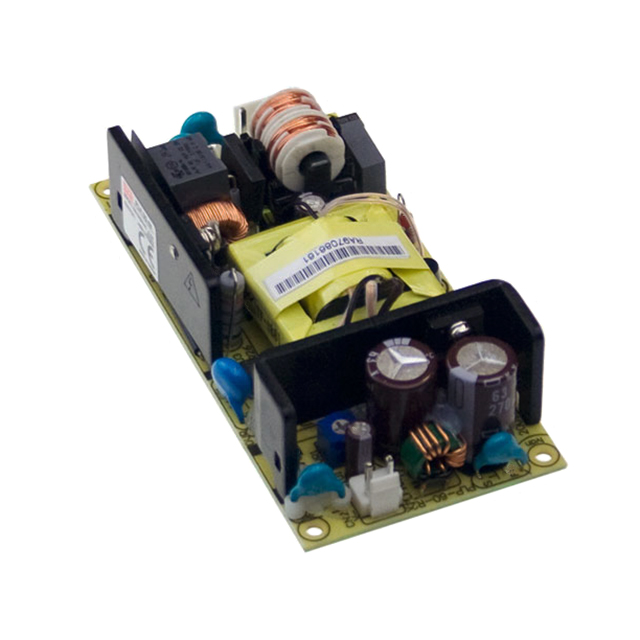

PLP-30-48
LED DRVR CC AC/DC 36-48V 630MAManufacturer: MEAN WELL USA Inc.
Categories: LED Drivers
Quality Control: Learn More
630mA 36 ~ 48V Constant Current LED Driver AC DC Converter Topology 1 Output
Additional Information
Series: PLP-30 (30W)RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | OCP, OVP, SCP |
| Packaging | Box |
| Size / Dimension | 4.00"" L x 2.00"" W x 1.05"" H (101.6mm x 50.8mm x 26.6mm) |
| Voltage - Output | 36 ~ 48V |
| Type | Constant Current |
| Operating Temperature | -30°C ~ 70°C |
| Termination Style | Rectangular, 2 Position |
| Voltage - Input (Max) | 264VAC |
| Approval Agency | CB, CCC, CE, TUV, UR |
| Ratings | - |
| Efficiency | 86.5% |
| Topology | AC DC Converter |
| Current - Output (Max) | 630mA |
| Dimming | - |
| Voltage - Input (Min) | 90VAC |
| Power (Watts) | 30 W |
| Number of Outputs | 1 |
| Voltage - Isolation | 3.75 kV |
| Programmable | Not Verified |
Request a Quote
