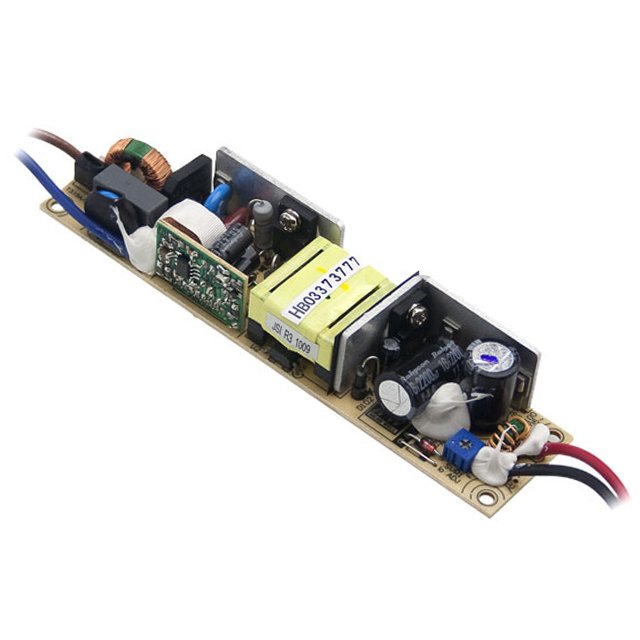

PLP-20-24
LED DRVR CC AC/DC 18-24V 800MAManufacturer: MEAN WELL USA Inc.
Categories: LED Drivers
Quality Control: Learn More
MEAN WELL USA Inc. PLP-20-24 is an 800mA constant current LED driver from the PLP-20 (20W) series. This AC/DC converter offers a single output with an adjustable voltage range of 18-24V, suitable for driving high-power LEDs. The unit provides a maximum output current of 800mA and a power output of 19W with an efficiency of 82%. Designed for reliability, it incorporates over-current protection (OCP), over-temperature protection (OTP), over-voltage protection (OVP), and short-circuit protection (SCP). The input voltage range is 90-277VAC, with an isolation voltage of 3.75 kV. Termination is via wire leads, and the compact dimensions are 140.0mm x 32.0mm x 22.0mm. This component is certified by CB, CCC, CE, cURus, and TUV, making it appropriate for use in general lighting and industrial applications.
Additional Information
Series: PLP-20 (20W)RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | OCP, OTP, OVP, SCP |
| Packaging | Box |
| Size / Dimension | 5.51"" L x 1.26"" W x 0.87"" H (140.0mm x 32.0mm x 22.0mm) |
| Voltage - Output | 18 ~ 24V |
| Type | Constant Current |
| Operating Temperature | -30°C ~ 60°C |
| Termination Style | Wire Leads |
| Voltage - Input (Max) | 277VAC |
| Approval Agency | CB, CCC, CE, cURus, TUV |
| Ratings | - |
| Efficiency | 82% |
| Topology | AC DC Converter |
| Current - Output (Max) | 800mA |
| Dimming | - |
| Voltage - Input (Min) | 90VAC |
| Power (Watts) | 19 W |
| Number of Outputs | 1 |
| Voltage - Isolation | 3.75 kV |
| Programmable | Not Verified |
