PLN-60-48
LED DRVR CC AC/DC 33.6-48V 1.3AManufacturer: MEAN WELL USA Inc.
Categories: LED Drivers
Quality Control: Learn More

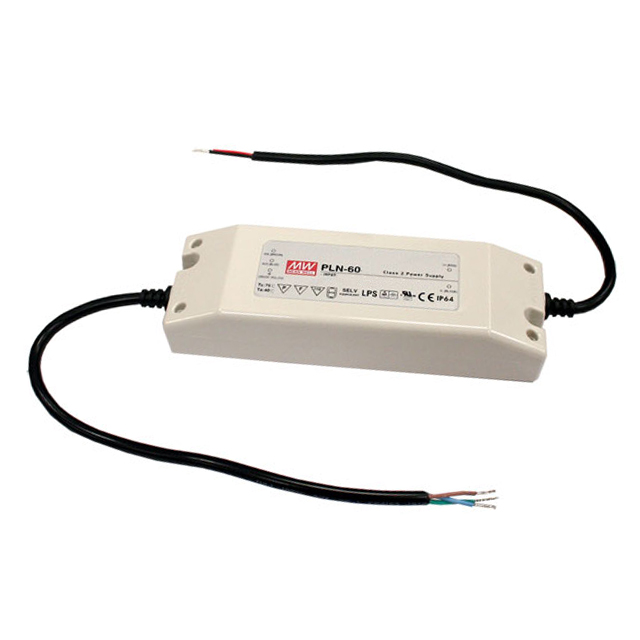

MEAN WELL USA Inc. PLN-60 Series, part number PLN-60-48, is a 60W AC/DC constant current LED driver. This unit provides a 1.3A output current with an adjustable voltage range of 33.6V to 48V. Featuring an efficiency of 89% and a power factor correction greater than 0.9, the PLN-60-48 is designed for reliability with built-in protections including OCP, OTP, OVP, and SCP. Its IP64 rating and operating temperature range of -30°C to 50°C make it suitable for challenging environments found in general lighting, architectural lighting, and signage applications. The driver offers 3.75 kV isolation and wire lead termination for straightforward integration.
Additional Information
Series: PLN-60 (60W)RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: Not For New DesignsPackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | OCP, OTP, OVP, SCP |
| Packaging | Box |
| Size / Dimension | 7.13"" L x 2.42"" W x 1.38"" H (181.0mm x 61.5mm x 35.0mm) |
| Voltage - Output | 33.6 ~ 48V |
| Type | Constant Current |
| Operating Temperature | -30°C ~ 50°C |
| Termination Style | Wire Leads |
| Voltage - Input (Max) | 295VAC |
| Approval Agency | CB, CE, PSE, TUV, UR |
| Ratings | IP64 |
| Efficiency | 89% |
| Topology | AC DC Converter |
| Current - Output (Max) | 1.3A |
| Dimming | - |
| Voltage - Input (Min) | 90VAC |
| Power (Watts) | 62 W |
| Number of Outputs | 1 |
| Voltage - Isolation | 3.75 kV |
| Programmable | Not Verified |
