PLN-45-15
LED DRVR CC AC/DC 11.25-15V 3AManufacturer: MEAN WELL USA Inc.
Categories: LED Drivers
Quality Control: Learn More

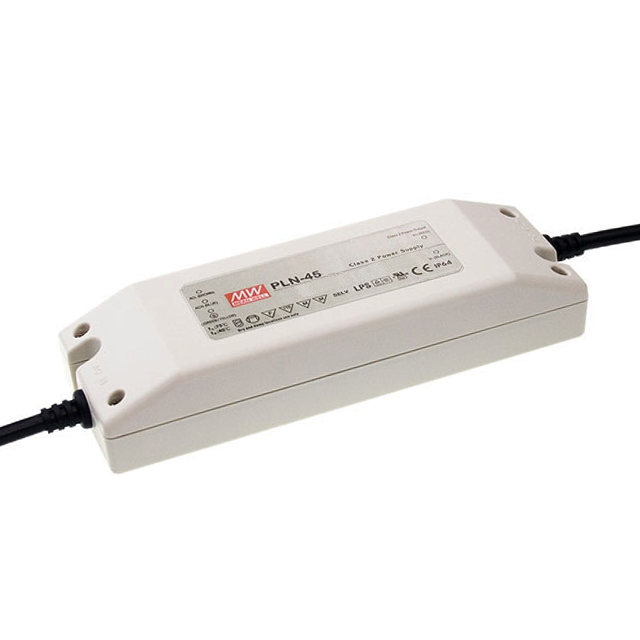

MEAN WELL USA Inc. PLN-45 (45W) series constant current LED driver, part number PLN-45-15. This AC/DC converter features a 45W power output and a single output providing 11.25V to 15V at a maximum of 3A. It operates within a 90-295VAC input range with 3.75 kV isolation. The topology offers an efficiency of 85% and includes built-in protection for Over Current (OCP), Over Temperature (OTP), Over Voltage (OVP), and Short Circuit (SCP). With an IP64 rating, this driver is suitable for demanding environments, finding application in general lighting and signage. Dimensions are 181.0mm x 61.5mm x 35.0mm with wire lead terminations. Approvals include CB, CE, cURus, PSE, and TUV.
Additional Information
Series: PLN-45 (45W)RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: Not For New DesignsPackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | OCP, OTP, OVP, SCP |
| Packaging | Box |
| Size / Dimension | 7.13"" L x 2.42"" W x 1.38"" H (181.0mm x 61.5mm x 35.0mm) |
| Voltage - Output | 11.25 ~ 15V |
| Type | Constant Current |
| Operating Temperature | -30°C ~ 50°C |
| Termination Style | Wire Leads |
| Voltage - Input (Max) | 295VAC |
| Approval Agency | CB, CE, cURus, PSE, TUV |
| Ratings | IP64 |
| Efficiency | 85% |
| Topology | AC DC Converter |
| Current - Output (Max) | 3A |
| Dimming | - |
| Voltage - Input (Min) | 90VAC |
| Power (Watts) | 45 W |
| Number of Outputs | 1 |
| Voltage - Isolation | 3.75 kV |
| Programmable | Not Verified |
