PLN-30-24
LED DRVR CC AC/DC 16.8-24V 1.25AManufacturer: MEAN WELL USA Inc.
Categories: LED Drivers
Quality Control: Learn More

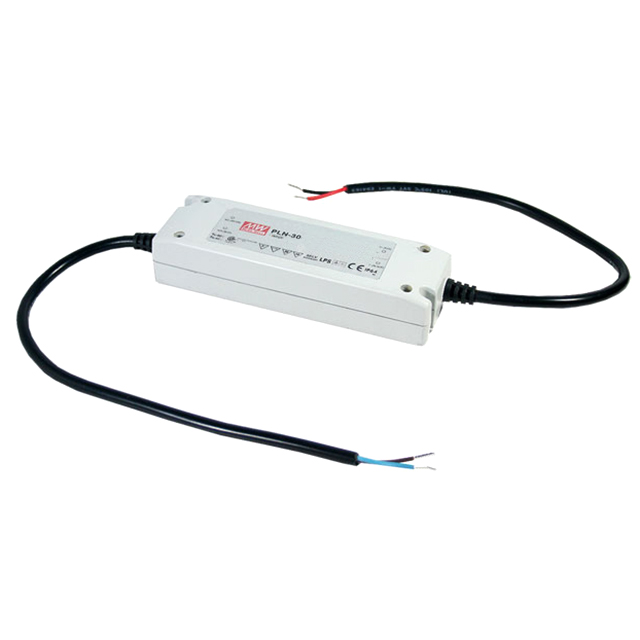

MEAN WELL USA Inc. PLN-30 (30W) Constant Current LED Driver. This AC/DC power supply delivers 1.25A output current with a selectable voltage range of 16.8V to 24V, suitable for 30W LED applications. Featuring a constant current topology, it offers high efficiency of 84% and operates across a wide input voltage range of 90VAC to 295VAC. Protection features include Over Current Protection (OCP), Over Temperature Protection (OTP), Over Voltage Protection (OVP), and Short Circuit Protection (SCP). The unit is rated IP64 for dust and water resistance and boasts 3.75 kV isolation voltage. Its compact dimensions are 145.0mm x 47.0mm x 30.0mm with wire lead termination. Approvals include CB, cCSAus, CE, cURus, PSE, and TUV. Applications span general lighting, architectural lighting, and industrial lighting systems.
Additional Information
Series: PLN-30 (30W)RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: Not For New DesignsPackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | OCP, OTP, OVP, SCP |
| Packaging | Box |
| Size / Dimension | 5.71"" L x 1.85"" W x 1.18"" H (145.0mm x 47.0mm x 30.0mm) |
| Voltage - Output | 16.8 ~ 24V |
| Type | Constant Current |
| Operating Temperature | -30°C ~ 50°C |
| Termination Style | Wire Leads |
| Voltage - Input (Max) | 295VAC |
| Approval Agency | CB, cCSAus, CE, cURus, PSE, TUV |
| Ratings | IP64 |
| Efficiency | 84% |
| Topology | AC DC Converter |
| Current - Output (Max) | 1.25A |
| Dimming | - |
| Voltage - Input (Min) | 90VAC |
| Power (Watts) | 30 W |
| Number of Outputs | 1 |
| Voltage - Isolation | 3.75 kV |
| Programmable | Not Verified |
