PLM-40E-700
LED DRVR CC AC/DC 29-57V 700MAManufacturer: MEAN WELL USA Inc.
Categories: LED Drivers
Quality Control: Learn More

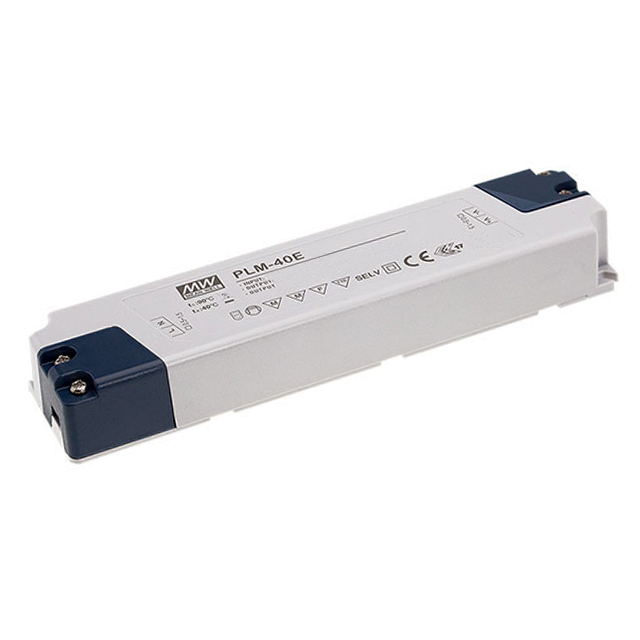

MEAN WELL USA Inc. PLM-40E-700 is a 40W constant current LED driver, part of the PLM-40E series. This AC/DC converter features a 700mA maximum output current and an adjustable output voltage range of 29V to 57V. With an efficiency of 87%, it operates within an input voltage range of 180VAC to 295VAC and offers 3.75 kV of isolation. The driver is equipped with Over-Temperature Protection (OTP) and Short-Circuit Protection (SCP). Its compact dimensions are 175.0mm x 42.0mm x 24.0mm, and it utilizes terminal block terminations. Typical applications include general lighting and architectural lighting systems. Approvals include CB, CCC, CE, and ENEC.
Additional Information
Series: PLM-40E (40W)RoHS Status: ROHS3 CompliantManufacturer Lead Time: 21 week(s)Product Status: ObsoletePackaging: BoxDownload Free CAD Model:
Technical Details:
| Features | OTP, SCP |
| Packaging | Box |
| Size / Dimension | 6.89"" L x 1.65"" W x 0.94"" H (175.0mm x 42.0mm x 24.0mm) |
| Voltage - Output | 29 ~ 57V |
| Type | Constant Current |
| Operating Temperature | -30°C ~ 40°C |
| Termination Style | Terminal Block |
| Voltage - Input (Max) | 295VAC |
| Approval Agency | CB, CCC, CE, ENEC |
| Ratings | - |
| Efficiency | 87% |
| Topology | AC DC Converter |
| Current - Output (Max) | 700mA |
| Dimming | - |
| Voltage - Input (Min) | 180VAC |
| Power (Watts) | 39 W |
| Number of Outputs | 1 |
| Voltage - Isolation | 3.75 kV |
| Programmable | Not Verified |
