PLM-40-500
LED DRVR CC AC/DC 40-80V 500MAManufacturer: MEAN WELL USA Inc.
Categories: LED Drivers
Quality Control: Learn More

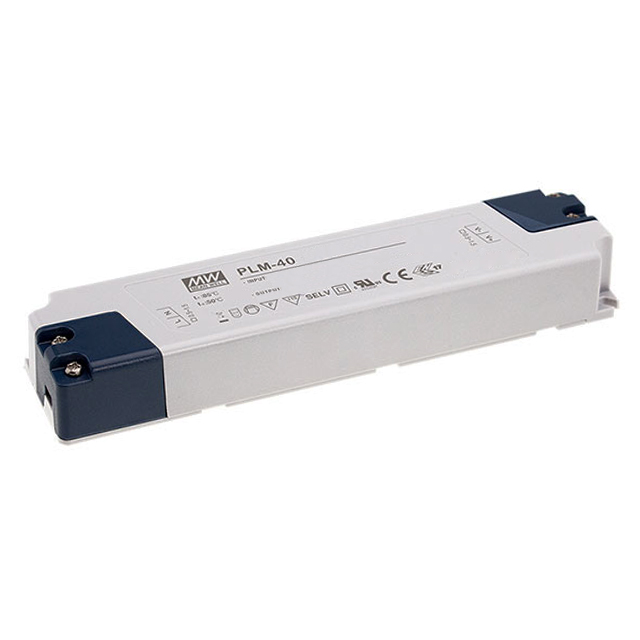

MEAN WELL USA Inc. PLM-40-500 Constant Current LED Driver. This 40W AC/DC converter features a 500mA output current and a voltage range of 40-80V. With an efficiency of 88% and an input voltage range of 110-295VAC, it offers robust performance. The PLM-40 series driver includes Over-Temperature Protection (OTP) and Short-Circuit Protection (SCP) for enhanced reliability. It is designed with a single output and utilizes terminal block termination. Approvals include CB, CCC, CE, cURus, and ENEC, with an IP30 rating. Typical applications for this driver are found in general lighting and architectural lighting systems. Dimensions are 175.0mm x 42.0mm x 24.0mm.
Additional Information
Series: PLM-40 (40W)RoHS Status: ROHS3 CompliantManufacturer Lead Time: 21 week(s)Product Status: ObsoletePackaging: BoxDownload Free CAD Model:
Technical Details:
| Features | OTP, SCP |
| Packaging | Box |
| Size / Dimension | 6.89"" L x 1.65"" W x 0.94"" H (175.0mm x 42.0mm x 24.0mm) |
| Voltage - Output | 40 ~ 80V |
| Type | Constant Current |
| Operating Temperature | -30°C ~ 40°C |
| Termination Style | Terminal Block |
| Voltage - Input (Max) | 295VAC |
| Approval Agency | CB, CCC, CE, cURus, ENEC |
| Ratings | IP30 |
| Efficiency | 88% |
| Topology | AC DC Converter |
| Current - Output (Max) | 500mA |
| Dimming | - |
| Voltage - Input (Min) | 110VAC |
| Power (Watts) | 40 W |
| Number of Outputs | 1 |
| Voltage - Isolation | 3.75 kV |
| Programmable | Not Verified |
