PLM-25E-500
LED DRVR CC AC/DC 30-50V 500MAManufacturer: MEAN WELL USA Inc.
Categories: LED Drivers
Quality Control: Learn More

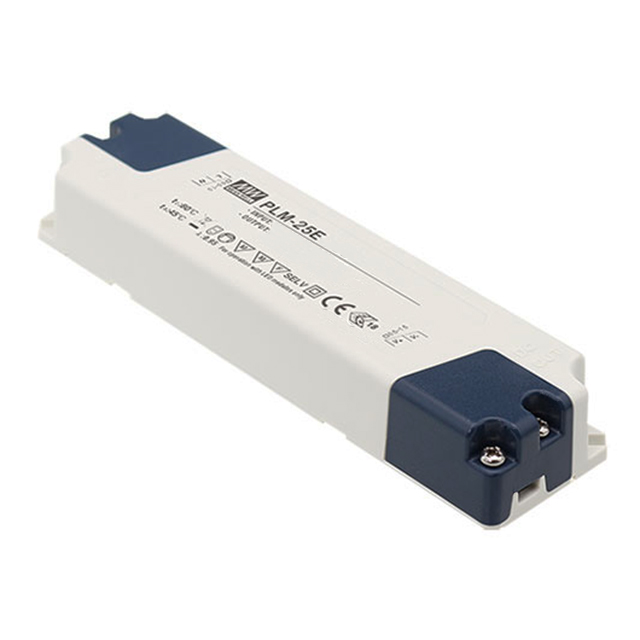

MEAN WELL USA Inc. PLM-25E Constant Current LED Driver. This 25W AC/DC converter features a 500mA output current and a 30-50V output voltage range, operating as a single-output, Type CC unit within the PLM-25E (25W) series. Designed for efficient operation with 85% typical efficiency, it supports input voltages from 180VAC to 295VAC, with an isolation voltage of 3.75 kV. The driver incorporates Short Circuit Protection (SCP) and is rated IP30. Its compact dimensions of 145.0mm x 38.0mm x 22.0mm and terminal block terminations facilitate integration into various systems. Approvals include CB, CCC, CE, and ENEC. This component is suitable for applications in general lighting and architectural lighting.
Additional Information
Series: PLM-25E (25W)RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | SCP |
| Packaging | Box |
| Size / Dimension | 5.71"" L x 1.50"" W x 0.87"" H (145.0mm x 38.0mm x 22.0mm) |
| Voltage - Output | 30 ~ 50V |
| Type | Constant Current |
| Operating Temperature | -30°C ~ 45°C |
| Termination Style | Terminal Block |
| Voltage - Input (Max) | 295VAC |
| Approval Agency | CB, CCC, CE, ENEC |
| Ratings | IP30 |
| Efficiency | 85% |
| Topology | AC DC Converter |
| Current - Output (Max) | 500mA |
| Dimming | - |
| Voltage - Input (Min) | 180VAC |
| Power (Watts) | 25 W |
| Number of Outputs | 1 |
| Voltage - Isolation | 3.75 kV |
| Programmable | Not Verified |
