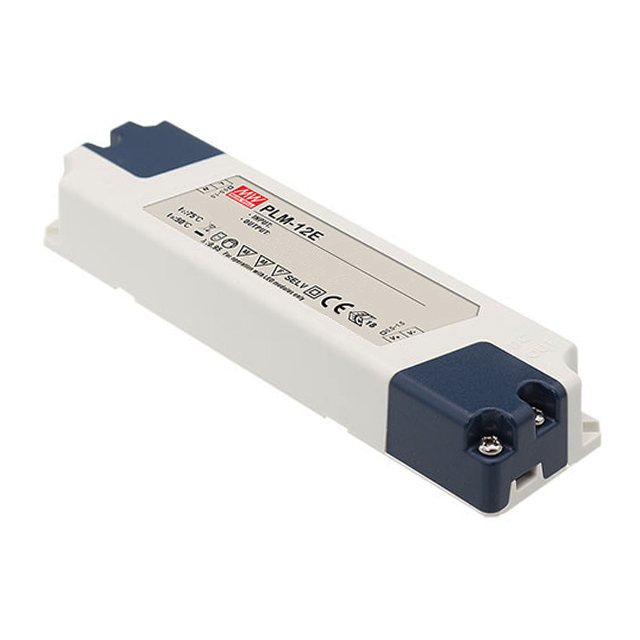

PLM-12E-700

LED DRVR CC AC/DC 11-18V 700MA

Manufacturer: MEAN WELL USA Inc.

Categories: LED Drivers

Quality Control: Learn More

MEAN WELL USA Inc. PLM-12E-700 is a 12W constant current LED driver. This AC/DC converter features a single output providing 11-18V at a maximum of 700mA. The PLM-12E series driver operates with an input voltage range of 180-295VAC and boasts an efficiency of 82%. Key features include short circuit protection (SCP) and 3.75 kV isolation voltage. Its terminal block termination style and IP30 rating make it suitable for various lighting applications, including architectural and general illumination. The compact dimensions are 145.0mm x 38.0mm x 22.0mm, and it operates within an ambient temperature range of -30°C to 50°C. Approvals include CB, CCC, CE, and ENEC.

Additional Information

Series: PLM-12E (12W)RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:
Technical Details:
FeaturesSCP
PackagingBox
Size / Dimension5.71"" L x 1.50"" W x 0.87"" H (145.0mm x 38.0mm x 22.0mm)
Voltage - Output11 ~ 18V
TypeConstant Current
Operating Temperature-30°C ~ 50°C
Termination StyleTerminal Block
Voltage - Input (Max)295VAC
Approval AgencyCB, CCC, CE, ENEC
RatingsIP30
Efficiency82%
TopologyAC DC Converter
Current - Output (Max)700mA
Dimming-
Voltage - Input (Min)180VAC
Power (Watts)13 W
Number of Outputs1
Voltage - Isolation3.75 kV
ProgrammableNot Verified
